IP2USB – Network AV to USB bridge switcher (NDI and Dante audio)
IP-to-USB converter and multi-camera switcher for professional AV setups with AVoIP support
** In stock **
Next-level pro-AV integration with IP, USB and Dante audio
The INOGENI IP2USB is a professional AV-to-USB bridge switcher that connects NDI® HX cameras, RTSP streams, Dante audio, and one supported USB/UVC camera to USB-based conferencing and collaboration systems. It enables integrators to combine network and USB video sources, switch between cameras, control compatible PTZ devices, and deliver the selected feed over a single USB connection. It bridges IP and USB cameras with your preferred web communication platform, providing a cost-effective way to integrate cameras and audio devices.
Key features
- Convert NDI® HX, RTSP and supported USB cameras to USB and HDMI outputs
- Switch instantly between network and USB camera sources via web interface, API or third-party control systems
- Support one USB/UVC camera input through USB-A port #1 as an additional video source
- Control compatible PTZ cameras and presets, including supported USB and IP camera models
- NDI® Certified for proven interoperability, performance and reliability
- Room-side integration support, enabling keypad or control processor-based source selection
- USB host connection via 1x USB 2.0 Type-B for Room PCs, CODECs and laptops
Video and audio performance
- Optimized for NDI® HX/HX2/HX3 (1080p60 H.264/H.265) and RTSP streaming
- UVC 1080p30 MJPEG video output
- UAC audio I/O support for bidirectional USB audio
- Dante audio integration with easy routing through Dante Controller - Learn more
- Audio processing support for HDMI and USB audio routing
Seamless integration and flexible control
- Control via IP, RS-232 or USB
- Camera control: VISCA and PTZ via preset commands
- LED indicators for power and RJ45 link status
- Easy integration with third-party AV control systems
Reliable and efficient
- Direct IP connectivity reduces reliance on costly DSP and USB extension systems
- Backed by a 5-year warranty
- Made in Canada and TAA-compliant
IP2USB multi-camera switcher with CAMTRACK automates AVoIP switching for up to 10 cameras
- The IP2USB functions as a high-performance hardware switcher managed by CAMTRACK, your Virtual Technical Director software. CAMTRACK uses Shure microphone data to trigger automated, voice-activated camera switching based on the active speaker.
- See more applications
>
The IP2USB is NDI Certified. Tested by the NDI Team.
Interoperability with NDI, NDI|HX and other AVoIP video sources

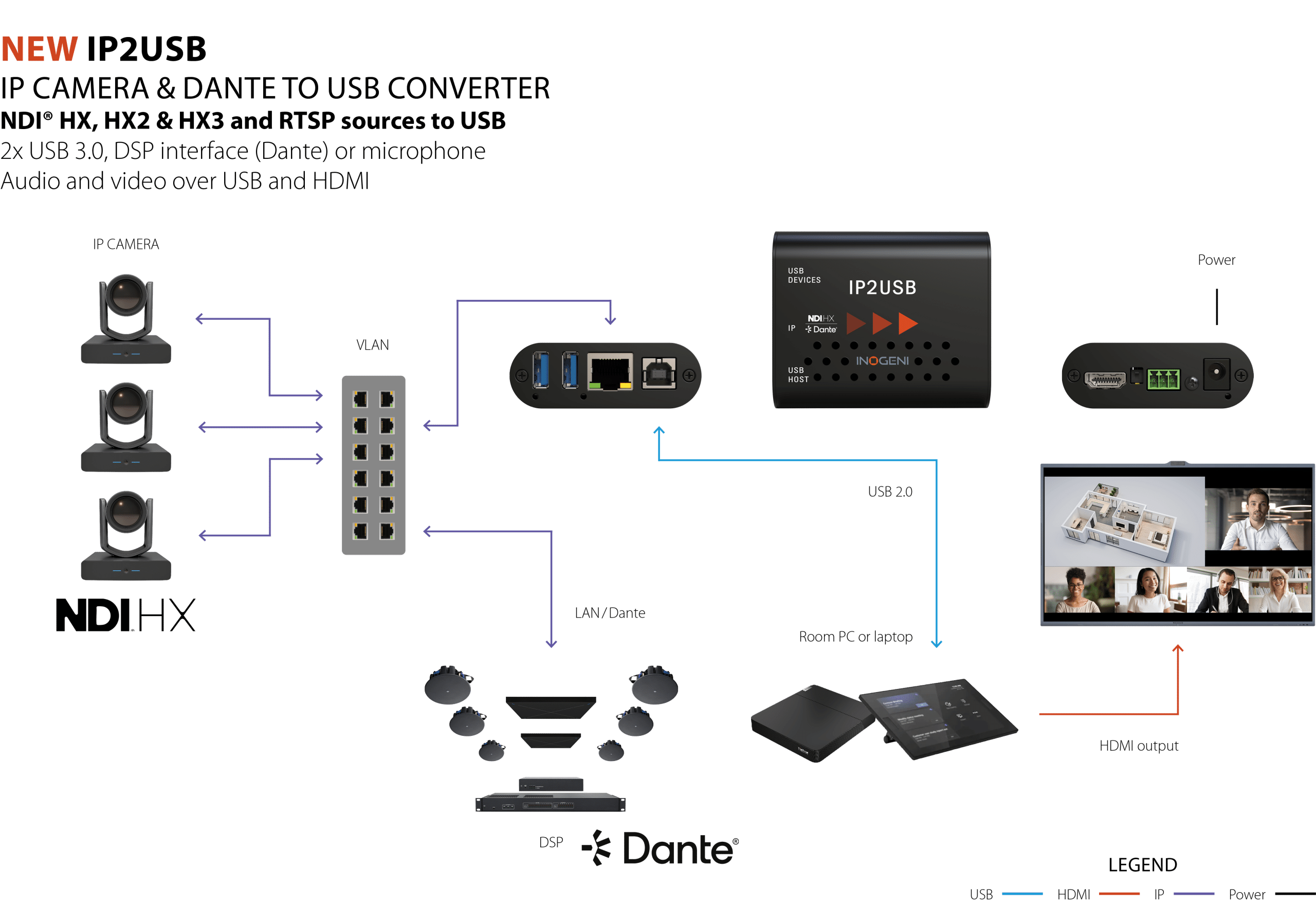

How it works
IP2USB bridges up to 10 NDI® HX and RTSP cameras, plus one supported USB camera, with USB-based conferencing and collaboration platforms. It converts and switches between all connected sources. It then delivers the selected feed as a standard USB camera to Teams Rooms, Zoom Rooms, Webex, conferencing CODECs and laptops.
Powered by INOGENI’s proven AV bridging technology, IP2USB delivers high-quality, low-latency video and audio with reliable performance. When paired with a keypad or control system, it enables fast source switching between cameras, ensuring smooth transitions that keep meetings and discussions flowing naturally.
IP2USB is NDI-certified
For environments with multiple cameras, the IP2USB can aggregate the signals from each camera, routing them over a single Ethernet connection to your laptop or CODEC system. This enables direct connection of advanced cameras to USB-enabled video conferencing hardware or software without additional infrastructure. IP2USB also supports PTZ control, making it an ideal choice for dynamic, multi-camera environments.
In addition to video, the IP2USB provides full audio integration, supporting UAC audio I/O over USB and HDMI audio output. This enables straightforward routing of audio from USB peripherals to HDMI sinks or to USB-connected systems. With flexible control via IP, USB, and RS-232, the IP2USB is a versatile solution that simplifies pro AV setups and delivers reliable, professional-grade performance.

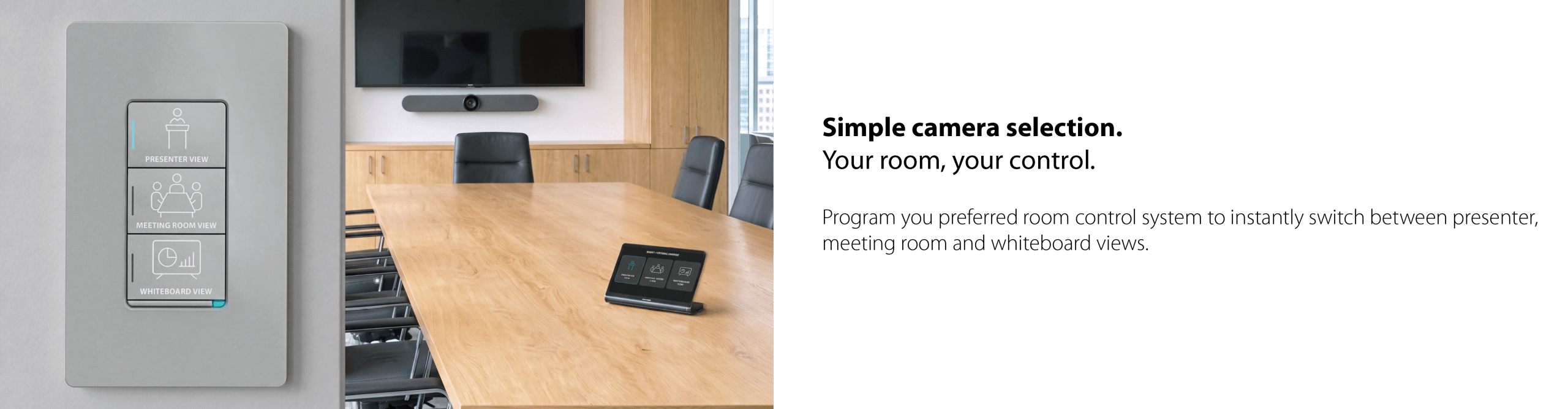

The right camera view. Exactly when you need it.
Empower meeting participants to instantly select the most relevant view, whether focusing on the presenter, the entire room, or the whiteboard. Simple, intuitive, and fully integrated with your room control system.
Dante audio integration with IP2USB
The IP2USB supports Dante audio, providing seamless, bidirectional audio over IP. This integration enables easy routing and streamlined audio handling for professional AV systems.
- Dual configuration options:
- 2×2 Audio interface
- 1×1 Speakerphone mode
- Flexible Dante routing:
- Signals can be routed via the Dante Controller, a familiar to integrators who use Dante for networked audio.
- Transmit 2x In and 2x Out Dante audio channels to the USB interface synchronized with video signals.
More about Dante capabilities:
With Dante, the IP2USB integrates audio over a single network, eliminating the need for traditional DSP (Digital Signal Processing). This makes the setup simpler, faster, and improves efficiency, as the Dante Controller handles all routing. This setup is ideal for users already familiar with Dante in their AV workflows, offering both flexibility and reliability in networked audio integration.
Centralized commands: IP2USB integrated web interface
The IP2USB features a powerful integrated web interface for managing multiple IP camera sources. This intuitive interface allows integrators to perform live camera switching, monitor connection status at a glance, and recall precise PTZ presets. Designed for mission-critical stability, it streamlines the full lifecycle of your AV deployment—from initial configuration and friendly source naming to simplified, one-click firmware updates.
- Real-time diagnostics and control: Instantly toggle between IP and NDI® HX feeds and monitor live signal health without interrupting meeting flow.
- Streamlined management: Customize device settings and maintain peak performance with simple remote configuration tools and full API support for deep third-party integration.
Features
High-performance IP connectivity and USB interface
The IP2USB supports multiple AVoIP standards, including NDI® HX, RTSP and Dante audio, enabling seamless transmission of video and audio over the network with low latency and high quality. This allows users to reduce system complexity and dependency on external DSP systems while maintaining professional-grade performance.

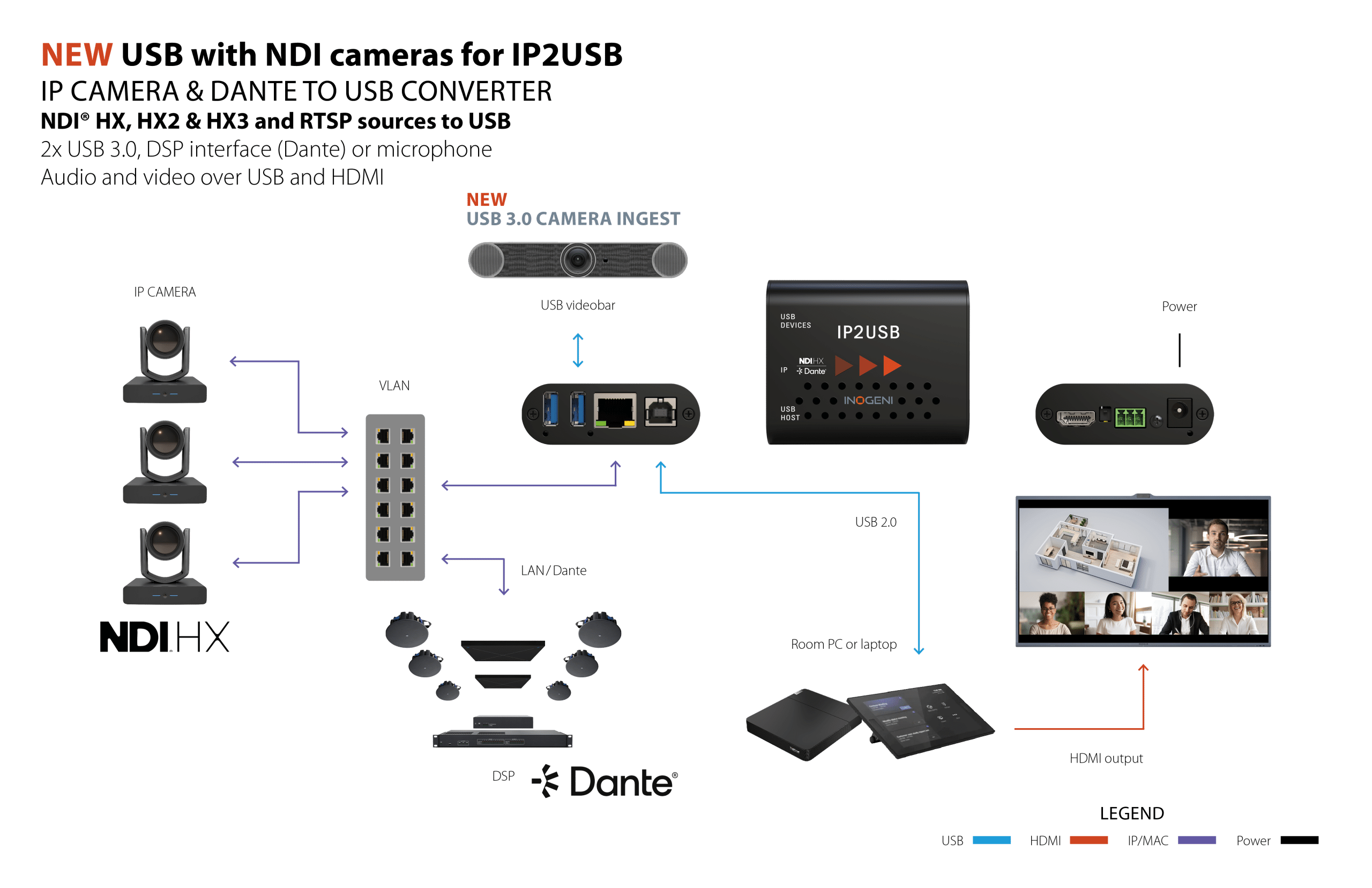

Hybrid camera connectivity
The latest capabilities extend IP2USB beyond IP camera conversion by adding supported USB camera ingest and integrated PTZ control.
- Connect and switch between multiple NDI® HX and RTSP sources, plus one supported USB camera
- Connect the USB camera to USB-A port #1 for proper operation
- Control supported USB and IP PTZ cameras and recall compatible presets
- Deliver the selected source as plug-and-play UVC video while maintaining simultaneous HDMI output
- Benefit from hardware-accelerated processing for improved performance and power efficiency
Transform professional NDI® HX and RTSP network streams into standard USB UVC signals, enabling high-end IP cameras to function as plug-and-play webcams with virtually any conferencing platform.
Video and camera switching
- Convert multiple NDI® HX and RTSP sources to USB and HDMI
- NDI® Certified for proven interoperability, performance and reliability
- Instantly switch between multiple camera sources through the web interface, API or third-party control systems
- Seamless switching with no black frames or visible delays
- Supports NDI® HX, HX2, HX3 and RTSP streams up to 1080p60
- Friendly source naming for multi-camera deployments
Audio integration
- Dante audio support with simple routing through Dante Controller
- UAC audio I/O for bidirectional USB audio transport
- Route audio between network, USB and HDMI workflows
- Supports USB speakerphones, DSPs and professional audio peripherals

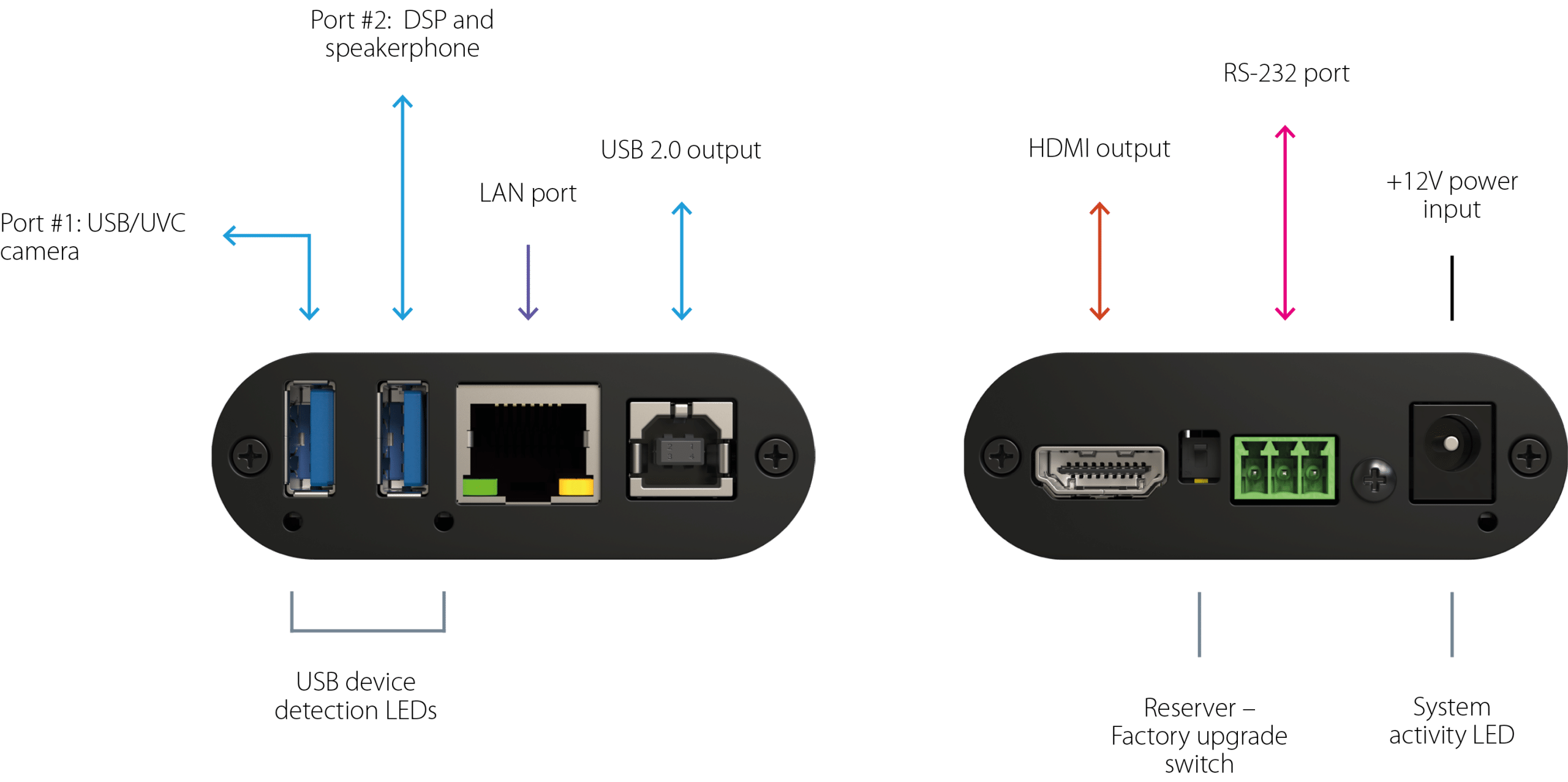

USB and HDMI connectivity
- 1× USB Type-B host connection for the conferencing computer
- 2× USB Type-A ports for peripherals, such as DSPs, speakerphones and cameras
- HDMI 2.0 output up to 4K60 with embedded audio
- Simultaneous USB and HDMI outputs
Camera control and system management
- PTZ control for supported USB and IP cameras
- VISCA and preset recall support
- Control via IP, RS-232 or USB
- Compatible with third-party control systems including Crestron and Extron
Reliability and installation diagnostics
- Hardware-accelerated processing for low-latency, reliable operation
- Intelligent USB port diagnostics with integrated LED status indication
- USB-A port LEDs provide immediate feedback and blink when a connection issue is detected
- LED indicators for power and network link status
- 12 VDC external power supply
Reduce system cost and complexity
- Direct IP connectivity can reduce reliance on costly DSP infrastructure
- Supports simultaneous video and audio integration within a single workflow
- Flexible architecture for conferencing, courtrooms, boardrooms, lecture halls and hybrid learning environments
CAMTRACK integration
The IP2USB serves as the hardware switching engine for CAMTRACK, INOGENI’s Virtual Technical Director. Combined with Shure microphone data, CAMTRACK automatically switches cameras based on the active speaker.
- Supports up to 8 cameras with CAMTRACK
- Supports up to 12 camera feeds with CAMTRACK PRO
- Ideal for boardrooms, courtrooms, council chambers and auditoriums
- Delivers reliable hardware decoding and stable USB output for mission-critical deployments
Plug & Go
Driverless compatibility with leading UC&C brands
INOGENI simplifies complex workflows with professional converters that capture and switch video without requiring drivers. IP2USB is a plug-and-play solution recognized by all major UC&C manufacturers, including Lenovo, Logitech, MAXHUB, Barco, and Airtame. Whether you are using Microsoft Teams Rooms, Zoom Rooms, or other leading ecosystems, our hardware ensures everything works together perfectly.
Compatible with NDI® HX, RTSP and supported USB cameras
IP2USB is a professional-grade switcher fully compatible with NDI® HX (High Bandwidth, HX2/HX3) and RTSP. It supports all professional IP cameras from Canon, Sony, and AVer, ensuring stable video conversion and full PTZ control over your network.
