4KX-PLUS – Convert Ultra HD to USB 3.0 with HDMI loop, analog audio, and external power

The 4KX-PLUS - Convert Ultra HD to USB 3.0 with an HDMI loop and external power for BYOM applications. It connects your HDMI cameras, video sources or CODECs to your laptop.





4K2USB3_ISO_WOut_shadow
4K2USB3_ISO_WOut_shadow
4K2USB3_TOP
4K2USB3_front
4K2USB3_BACK
4K2USB3_Bottom
previous arrow
next arrow
4K2USB3_ISO_WOut_shadow
4K2USB3_ISO_WOut_shadow
4K2USB3_TOP
4K2USB3_front
4K2USB3_BACK
4K2USB3_Bottom
previous arrow
next arrow



Perfectly compatible for Cisco Webex BYOM applications







Inogeni Cisco Webex Webex Room Kit • Webex Room Kit Plus • Webex Room Kit Pro • Webex Room 55 • Webex Room 70 • Webex Room Panorama Macro only • Cisco MX700 • Cisco MX800 • Cisco SX80

(The Webex Room Kit Plus needs the 4KX-PLUS to connect audio for one or two displays, as the Kit Plus does not support audio on its HDMI output)



Compatible with Cisco Webex Room Series

Configure your Cisco conferencing software to use USB cameras and microphones.

  • Activate ‘Enable USB mode’ on the Touch 10.
  • It works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
  • Compatible with USB 2.0 (high quality MJPEG)
  • The 4KX-PLUS with Cisco Devices enable multiple displays. The 4K2USB3 works only for one display.
  • The external power supply maintains the connection between the Cisco Webex CODEC and the 2nd display, even if the laptop is not connected to the 4KX-PLUS.



The most cost-effective and user-friendly interoperability solution

Rely on a proven technology that captures uncompressed HDMI video and audio from Webex devices, which then converts it to USB 3.0 for a third-party laptop.

  • Direct integration of Cisco room equipment (camera, audio and screen)
  • Solves the interoperability issue
  • Optimizes your assets and avoids additional license fees for Cloud Video Interop (CVI) service and user management
  • No driver required
  • Compatible with Windows, macOS and Linux laptops
  • Easily programed macros in your Webex Room Device. Native Webex implementation available in Q2 CY2022
  • Intuitive interface on Webex Touch 10 or Webex Navigator
  • To request the macros, click here.
  • Access to all Lines Drawings and the Cisco Step by Step Web Interface Setup Guide - USB Passthrough
  • Cisco Webex Macros and guides --> USB Mode landing page



Specifications

  • HDMI capture to USB 3.0
  • Compatible with USB 2.0 (high-quality MJPEG)
  • HDMI loop output
  • Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
  • HDMI audio support
  • Analog audio I/O
  • Digital Fluid technology: Internal frame buffers maximize frame rates
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion (UHD up-scaling not supported)
  • Image controls: Brightness, contrast, saturation, and hue settings
  • Supports multiple devices on the same PC
  • Compatible with Windows, Mac OSX, Linux and Android
  • Powered from external adapter or USB 2.0 (included) (5V, 900mA)
  • A six-foot USB 3.0 cable is included



Download the 4KX-PLUS User Guide

Read the Comprehensive Q&A here.

LINE DRAWINGS

For USB Passthrough – with Inogeni 4KX-PLUS at table
by Enrico Conedera
Senior Technical Marketing Engineer at
Cisco Systems

(PDF) Cisco Step by Step Web Interface Setup Guide - USB Passthrough

PDF FILES LINKS:

Discover the Cisco Webex Comunity

Walkthrough Wednesday: Unlocking BYOM in a Webex Environment
Watch the recording Webinar and Q&A

WTW BYOM in a Webex Environment.png

Join the experts at Cisco and INOGENI for a crash course on the simplest, most affordable, and most powerful way to augment any Webex UCC environment for platform-agnostic meetings. Hosted by BTX Technologies.

If you’ve ever installed a Webex system for a customer, you won’t want to miss this breakdown of how to solve today’s interoperability challenges while enhancing existing Webex investments quickly, easily, and at minimal cost.

Find all answers on the Q&A

Cisco Webex Macros and guides --> USB Mode landing page



LINE DRAWINGS

For USB Passthrough – with Inogeni 4KX-PLUS at table
by Enrico Conedera
Senior Technical Marketing Engineer at
Cisco Systems

(PDF) Cisco Step by Step Web Interface Setup Guide - USB Passthrough

PDF FILES LINKS:





4KX-PLUS Line Drawing Application with Cisco Webex Room Kit Plus





4K2USB3 Line Drawing Application with Cisco Webex Room Kit PRO

Find the 4K2USB3 product page here





4K2USB3 Line Drawing Application with Cisco Webex Room 70

Find the 4K2USB3 product page here





Download the 4KX-PLUS User Guide

HDMI Input

Connector 1 x HDMI 1.4a
Video Resolution 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480
Frame Rates 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color Space RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate 297 MHz
Embedded Audio Ch 1&2 48kHz LPCM
HDCP Copy Protection INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

HDMI Loop Output

Connector 1 x HDMI 1.4a
Video Resolution Same as HDMI input

USB 3.0/2.0 Output

Connector 1 x USB Type-B (USB 3.0/2.0)
Codec YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
MJPEG for USB 2.0
Video Scaler Automatic hardware based
Color Space Conversion Automatic hardware based
Sampling Conversion Automatic hardware based
Frame Rate Conversion Automatic hardware based
Audio 2-channel LPCM audio from HDMI and/or from Audio Jack

Audio Input

Connector 1 x 3.5mm analog audio jack (MIC or LINE level)

Audio Output

Connector 1 x 3.5mm analog audio jack (LINE level)

Audio Mixing

Mixing functionality HDMI audio and analog audio inputs are mixed over the USB input interface.
USB audio output and HDMI audio input are mixed over the analog audio output.
Use Control App in order to manage audio layout.

Compatibility

Cisco Webex Compatible

Easily programed macros in your Webex Room Device. (Click here to request the Macros)
Native Webex implementation available in Q2 CY2022.
Intuitive interface on Webex Touch 10 or Webex Navigator.
The 4KX-PLUS is compatible with Webex Devices for multiple Displays

The 4K2USB3 is compatible with Webex Devices for one Displays

Macro and native
    Webex Room Kit
    Webex Room Kit Plus
    Webex Room Kit Pro
    Webex Room 55
    Webex Room 70
    Webex Room Panorama
Macro only
    Cisco MX700
    Cisco MX800
    Cisco SX80

Operating System

NO driver installation necessary
Windows 7 and above (32/64-bit)
Mac OSX 10.10 and above
Linux (kernel v2.6.38) and above

Host Requirements Recommended USB 3.0 (uncompressed video) or USB 2.0 (high quality MJPEG)

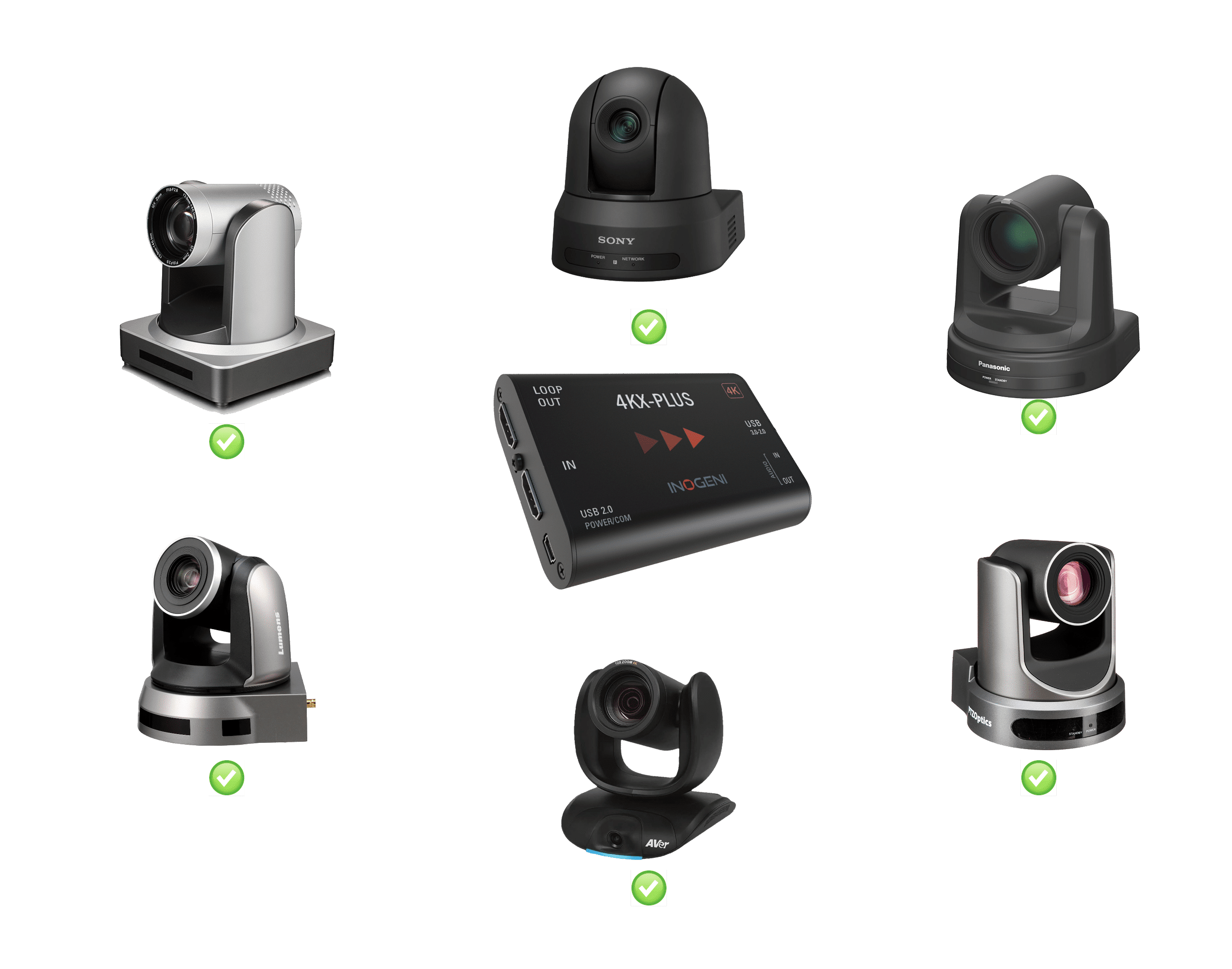

Cameras Supported Cameras (or video Source) with an HDMI output
Software Compatibility UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
Dimensions & Weight 3.9” x 2.9” x 0.75” 140g
Operating Temperature 0° to 45° C (32° to 113° F)
Storage Temperature -40° to 105° C (-40° to 221° F)
Relative Humidity 0% to 90% non-condensing
USB Power  If USB powered, USB Power: 5V, 900mA
UPC Code 051497285142
Origin Canada
Warranty 2 years
