Get all the technical specs you need for IP2USB IP camera to USB converter.

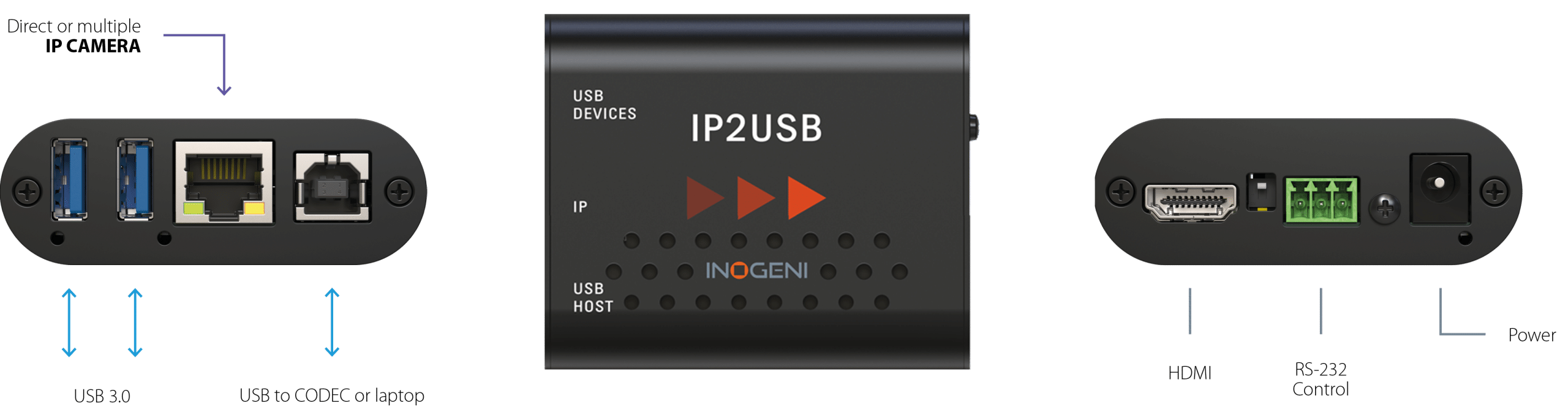

Block diagram
Main features
Description
The IP2USB device can connect to an IP camera (such as NDI ® HX and RTSP) and convert it to USB. It also supports Dante to USB conversion with optional AEC interface.
Video input
Connector
1 x RJ45 (10/100Mbps)
Supported standards
NDI Certified
NDI® HX/HX2/HX3 (H.264/H.265)
RTSP
* Full NDI HQ support will be available in a future firmware update
Video resolutions
Up to 1920x1080p60
USB video input
Connector
USB 3.0/2.0 Type-A on port #1
Supported standards
UVC standard
Video capabilities
Support for YUY2, NV12 and I420 pixel formats in uncompressed mode:
- Up to 1080p30 in USB 3.0
- Up to 1080p10 in USB 2.0
Support for MJPEG:
- Up to 1080p30 in USB 3.0/2.0
Audio
Supported USB devices
DSP & speakerphones
Supported Dante devices
DSP, microphones and speakers
Audio Channels: 2x in, 2x out
Sample rate: 48kHz
USB output
Connector
1x USB 2.0 Type-B
UVC interface up to 1080p30 MJPEG
UAC interface with audio I/O
PTZ control supported
Video scaler
Automatic hardware-based
Color space conversion
Automatic hardware-based
Sampling conversion
Automatic hardware-based
Frame rate conversion
Automatic hardware-based

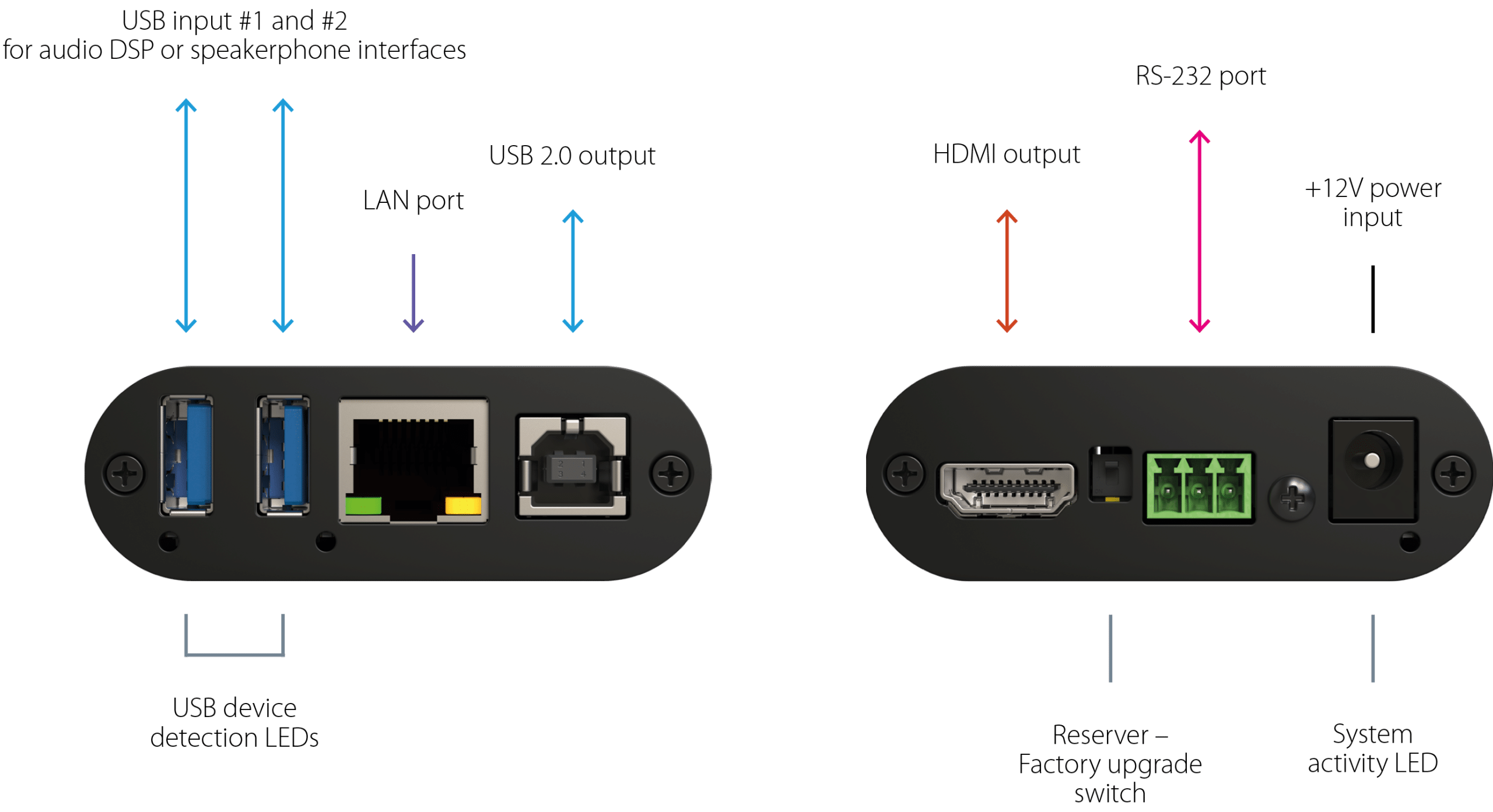

USB devices
Connectors
2x USB 3.0/2.0 Type-A
Port #1: for USB/UVC camera
Port #2: for DSP & speakerphone
HDMI output
Connector
1x HDMI 2.0
Video resolutions
3840x2160p24/25/30/50/60 fps
1080p50/60 fps
720p50/60 fps
Color space
YUV422 and YUV420 to RGB conversion
Embedded audio
Device will capture embedded audio from IP or external USB device and will output through HDMI.
Chroma subsampling
YUV/RGB
4:4:4, 4:2:2
Control
IP interface
10/100 Mbps
Supports DHCP or static IP addressing
RS-232 interface
3x positions – Terminal block
Baud rate: 9600
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None
PTZ and presets
Able to do PTZ and recall camera presets using NDI® or VISCA over IP protocols on supported cameras in next firmware release.
Compatibility
Operating systems
NO driver installation necessary!
Windows 10 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38) and above
Consumed USB tiers
1 tier
Supported cameras
Any NDI® | HX and RTSP camera source that support up to 1080p60 are supported.
Software compatibility
UVC-compliant.
Runs with all software compatible to DirectShow, AVFoundation and V4L2
Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
7.0 cm x 8.3 cm x 2.3 cm
2.76” x 3.76” x 0.9”
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight
140 g (0.31 lb)
Package contents
1x IP2USB converter
1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x Quick Start Guide
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
• International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Information
UPC code
051497480424
Origin
Canada
Warranty
5 years
Certifications
Certifications – Device
FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM, NDI Certified
TAA-compliant
Yes
What's in the box
- 1x IP2USB converter
- 1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)
- 1x RS-232 terminal block adapter
- 1x Quick Start Guide
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
