** Product available early December 2024 **
One cable to own the room! Any room!
ONE USB-C CABLE (100W) TO TAKE CONTROL OF YOUR LARGE ROOM
4K BYOD/BYOM FOR LARGE ROOMS: 3 host switcher for USB/HDMI devices with extension
Switch 6 peripherals between 3 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.
Versatile technology (BYOD/BYOM)
- Automatic or manual switching between Room PC and Laptops (3 hosts capable).
- Direct connection of 5x USB devices + 1 HDMI display.
- Flexible laptop connectivity: USB-C (100W) or USB-B + HDMI.
- 2 box system: At the display (Room PC hub) and at the table (laptop hub).
- Connected with a single CAT6A cable
- Uncompressed video signal via HDBaseT proven technology
- Reach: 40 m / 132 ft at 4K60 and 70 m / 230 ft at 1080p
- 1 display: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI).
- Tested and compatible by design with major UC systems and camera manufacturers, such as Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, Teams, Zoom, etc.
- Perfectly compatible with UC Logitech cameras and UC CODECs
- Discover the complete compatibility matrix between INOGENI and Logitech products.
- Logitech-tested compatible cameras: Rally and Rally Bar series, MeetUp, Scribe, and consumer cameras
- Logitech UC CODECs: Rally Bar and Rally Bar series (Appliance Mode), Roommate, for MTR and Zoom Rooms
- Discover the complete compatibility matrix between INOGENI and Logitech products.
Flexibility
- USB 3.2 Gen 1/USB 3.1 Gen 1, backward compatible with USB 3.0/2.0.
- IP, RS-232 and GPI control.
- Optional host switch button: Table surface-mounted button for BYOM laptop selection.
Peace of mind
- Made in Canada and TAA-compliant.
- Quality and reliability.
- No driver required.
- New Maestro device controller for easy configuration and update.
TOGGLE ROOMS XT facilitates videoconferencing management without any hassles. Users can switch seamlessly without waiting.
How it works
ONE CABLE SOLUTION TO TAKE CONTROL OF A LARGE ROOM
Switch up to 6 peripherals between 3 hosts (5 USB + 1 display): This flexibility extends across various settings, from large boardrooms to classrooms and auditoriums, making it an ideal solution for unified videoconferences.
OPTIMIZED DESIGN FOR LARGE ROOMS WITH TOGGLE ROOMS XT
Long distance resolved between the Room PC and laptop hubs
Room PC hub
- Connect up to 3 USB3 devices and an HDMI display
- Connect to the UC system (such as Lenovo, Logitech, MAXHUB Room PC)
- 4K60 / 16:9 and 5K30 / 21:9 wide screen (HDMI)
CAT6A extension cable
- Reach up to 70 m/230 ft from the main Room PC with a CAT6A cable
- Video signal up to 40 m for 4K60 and up to 70 m for 4K30
Laptop hub
- Connect up to 2 USB2 devices
- Connect the laptop via USB-C (100W) or HDMI and USB-B
- INO-HOST BUTTON via GPI
- Routes Laptop content to control pads such as MAXHUB XCore and the Logitech Tap
Discover how INOGENI solves room size problem with its TOGGLE’ Series
Explore the full range of our innovative solutions.
Visit the TOGGLE and TOGGLE ROOMS webpage to learn more!
ROOM PC HOSTS THE MEETING
- Room PC mode: In this mode, the USB and HDMI devices are routed only to the Room PC.
- Room PC mode with laptop sharing content (BYOD: If the user wants to send HDMI content from the laptop’s USB-C or HDMI connection to the Room PC, it is possible to do so with the HDMI SHARE output connection.
LAPTOP HOSTS THE MEETING
- Laptop BYOM mode: In this mode, the laptop is the system that is currently selected for the main USB and HDMI peripherals. The Room PC is completely disconnected from the setup.
Features
TOGGLE ROOMS XT – SWITCH from BYOD to BYOM modes with only one cable for a Room PC and laptop
Switch up to 6 peripherals between 3 hosts (5 USB + 1 display) and use one USB-C (100W) cable to connect the laptop. Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.
AUTOMATIC/MANUAL HOST SWITCHING
TOGGLE ROOM XT comprises 2 hubs
linked with a CAT6A extension of up to 70 m.
Host connections for the TOGGLE ROOMS XT / Room PC & Laptop hubs
- Resolutions: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI)
- Reach: Up to 70 m/230 ft from the main Room PC with CAT6A cable
- Video signal: Up to 40 m/132 ft for 4K60 and up to 70 m/230 ft for 4K30

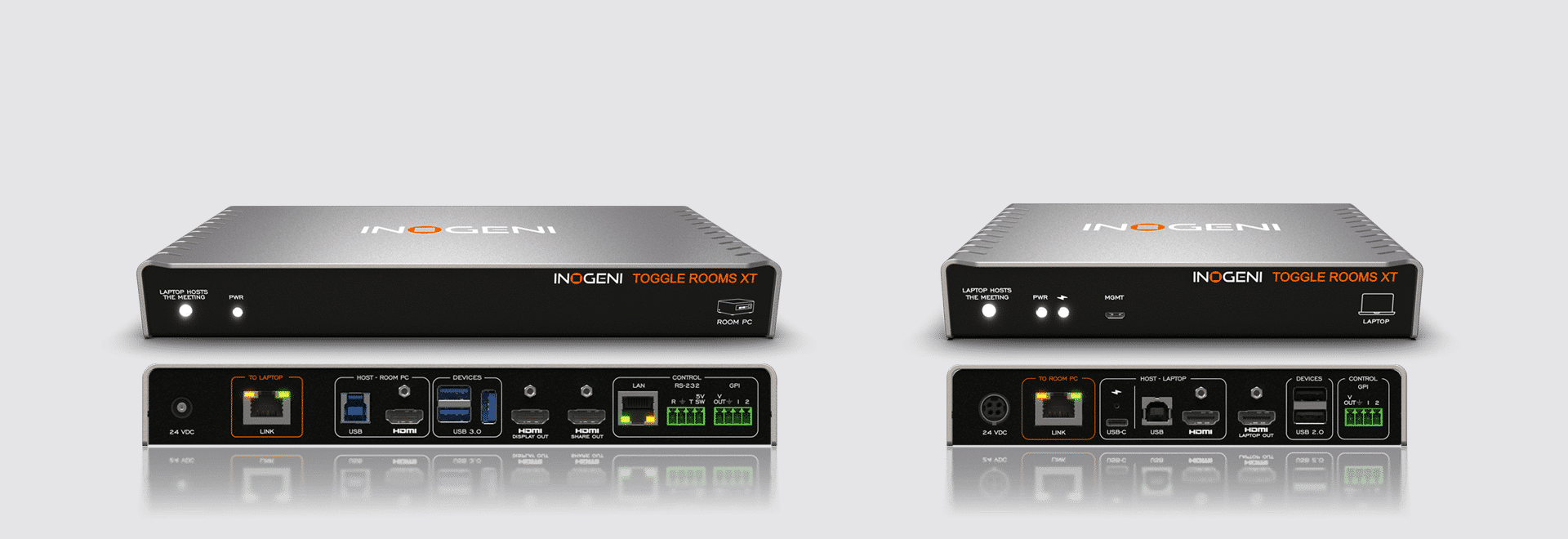

TOGGLE ROOMS XT – Room PC hub
Near the Room PC system, display, videobar, camera and audio.
Link to the Room PC:
- 1x USB-B host connection and 1x HDMI 2.0 video input.
INPUTS
- 3x USB 3.0/2.0 devices (high-quality cameras, videobar or audio devices).
OUTPUTS
4K60 in 16:9 and 5K30 21:9 in widescreen (HDMI)
- 1x HDMI 2.0, up to 4K60 for DISPLAY connection from selected host.
- 1x HDMI 2.0, up to 4K60 for SHARE connection from BYOD to Room PC HDMI ingest.
CONTROL OPTIONS:
- RS-232
- IP
- 2x GPI
TOGGLE ROOMS XT – Laptop hub
Under the table connected to laptop, speakerphone and control pad.
INPUTS
Laptop connections
- 1x USB-C host connection (USB 2.0, DP alternate mode and power delivery 100W)
- 1.8 m/6 ft USB-C 100W cable included.
- 10 m/33 ft USB-C tested solutions. (view the list)
- – OR –
- 1x USB-B host connection and 1x HDMI 2.0 video input, up to 4K60.
Other devices
- 2x USB 2.0 devices (speaker phone, 360 camera, document camera, etc.).
- INO-HOST BUTTON via GPI.
OUTPUT
- Routes Laptop content to control pads, such as MAXHUB XCore and the Logitech Tap.
- 1x HDMI 2.0
COST-EFFECTIVE and RELIABLE SOLUTION
- Simple to install and connect (no driver required).
- Compatibility with leading MTR, Zoom Rooms, and UC systems.
- Compatible with USB cameras, videobars and videoconferencing audio devices.
CONTROL OPTIONS
- RS-232
- IP
- 2x GPI
- Host switch button: Table surface-mounted button for BYOM laptop selection
- Accessories are available separately
- OPTIONAL: INO – Host button
INO – Host button (optional)
OTHER FEATURES
- Bidirectional audio system AEC works for videobars, such as Cisco, Poly, Logitech, Bose, Shure, Sennheiser, Nureva, Biamp or Lumens.
- Multiple mounting options.
- Visual LED status.
- Switch button on the front of the devices.
- Audio embedded in USB and HDMI signal.
ADVANCED VIDEO QUALITY
- Automatic scaling.
- Supports multiple devices on the same host.
- Device configuration via the INOGENI MAESTRO device controller.
Plug & Go with INOGENI’s TOGGLE ROOMS XT!
These videoconferencing systems (Room PCs) need TOGGLE ROOMS XT to enable BYOM and BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.
Compatible with all USB cameras, video bars and pro-AV audio devices
Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS XT! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.
