Compatible with CODECs and soft CODECs
Through INOGENI USB switcher connections, the videoconferencing platforms such as Microsoft Teams, Zoom, and other software CODECs integrate nativley with CAMTRACK for intelligent camera automation and audio-video synchronization. By automatically switching cameras to follow active speakers, CAMTRACK’s ecosystem transforms standard meetings into immersive, professional-quality experiences that keep participants engaged.
SHURE Audio Devices Compatible with INOGENI’s CAMTRACK
Optimize voice tracking for any room
To maximize the INOGENI CAMTRACK ‘s voice-activated camera switching, a clear understanding of each compatible SHURE audio device is essential. This breakdown outlines the voice zones, coverage areas, and ideal room sizes for each SHURE microphone, ensuring precise speaker tracking for every meeting space, from huddle rooms to auditoriums.
Here’s the breakdown of SHURE equipment compatible with the INOGENI CAMTRACK, including maximum voice zones or lobes, approximate coverage area, and suitable room sizes:
Note: For DSPs and interfaces (e.g., P300, IntelliMix Room, ANIUSB), coverage and “zones” are entirely dependent on the specific microphones connected to them. From the CAMTRACK ‘s perspective, automatic switching is based on the distinct audio sources identified by these microphones.
SHURE Array and Ceiling Microphones
SHURE MXA901 Ceiling Array Microphone
- 1 fixed, wide coverage lobe; pre-calibrated 360° pickup for small/medium rooms
- Each microphone can trigger CAMTRACK presets for simple zone-based switching
🔗 Product link
SHURE MXA910 Ceiling Array Microphone (EOL / predecessor to MXA920)
- 8 fully steerable lobes with customizable size, shape, and position for defined zones
- Each lobe triggers CAMTRACK camera presets for precise speaker tracking
- The MXA910 is an older generation Microphone Array, therefore the localization is only based on speech detection from the 8 dedicated lobes and is not as accurate as the new generation’s Automatic Coverage™.
🔗 Product Link
SHURE MXA920 Ceiling Array Microphone
- Up to 8 adjustable voice lobes with precise tracking via zones or XYZ coordinates
- Coverage up to 9 m x 9 m; fully supported by CAMTRACK for lobe-based camera switching
🔗 Product Link
SHURE MXA710 Linear Array Microphone
- 2-foot model: up to 4 lobes; 4-foot model: up to 8 lobes; steerable along table or wall edges
- Each lobe can control a separate CAMTRACK preset for accurate speaker tracking
🔗 Product Link
SHURE MXA310 Table Array Microphone
- Up to 4 independent lobes for round or square tables; ideal for huddle or small conference rooms
- Each lobe maps to a CAMTRACK preset for center-of-table speaker switching
🔗 Product Link
SHURE Wireless Microphone Systems
SHURE MXW neXt Wireless Microphone System
- Multiple wireless channels (podium, panelists, audience) with secure transmission
- Channels can trigger CAMTRACK camera presets via REST API for hybrid meetings
🔗 Product Link
SHURE MXCW (Microflex Complete Wireless) Conference System
- Supports up to 125 units per access point; each acting as a separate “voice zone”
- Active microphone status automatically triggers CAMTRACK camera presets
🔗 Product Link
SHURE DSPs and Interfaces
SHURE IntelliMix Room Software DSP
- Supports up to 16 Dante input channels with per-channel voice detection
- Fully compatible with CAMTRACK for real-time camera switching
🔗 Product Link
SHURE IntelliMix P300 Audio Conferencing Processor
- 8 microphone channels with advanced processing (AEC, NR, automatic mixing)
- Active channels can trigger CAMTRACK camera presets for precise switching
🔗 Product Link
SHURE ANIUSB-MATRIX USB Audio Network Interface
- Bridges up to 4 Dante channels to USB with per-channel voice detection
- Channels can control CAMTRACK camera presets for conference-style speaker tracking
🔗 Product Link
IntelliMix Foundation Base Kit for Microsoft Teams Rooms
- 8 or 16 channels optimized for Teams Rooms with scalable audio performance
- Dante microphone zones can trigger CAMTRACK presets for seamless camera automation
🔗 Product Link
SHURE MXA Mute (Network Mute Button)
- Network-based mute control with configurable momentary/toggle operation
- Can trigger CAMTRACK camera presets or room-wide actions
🔗 Product Link

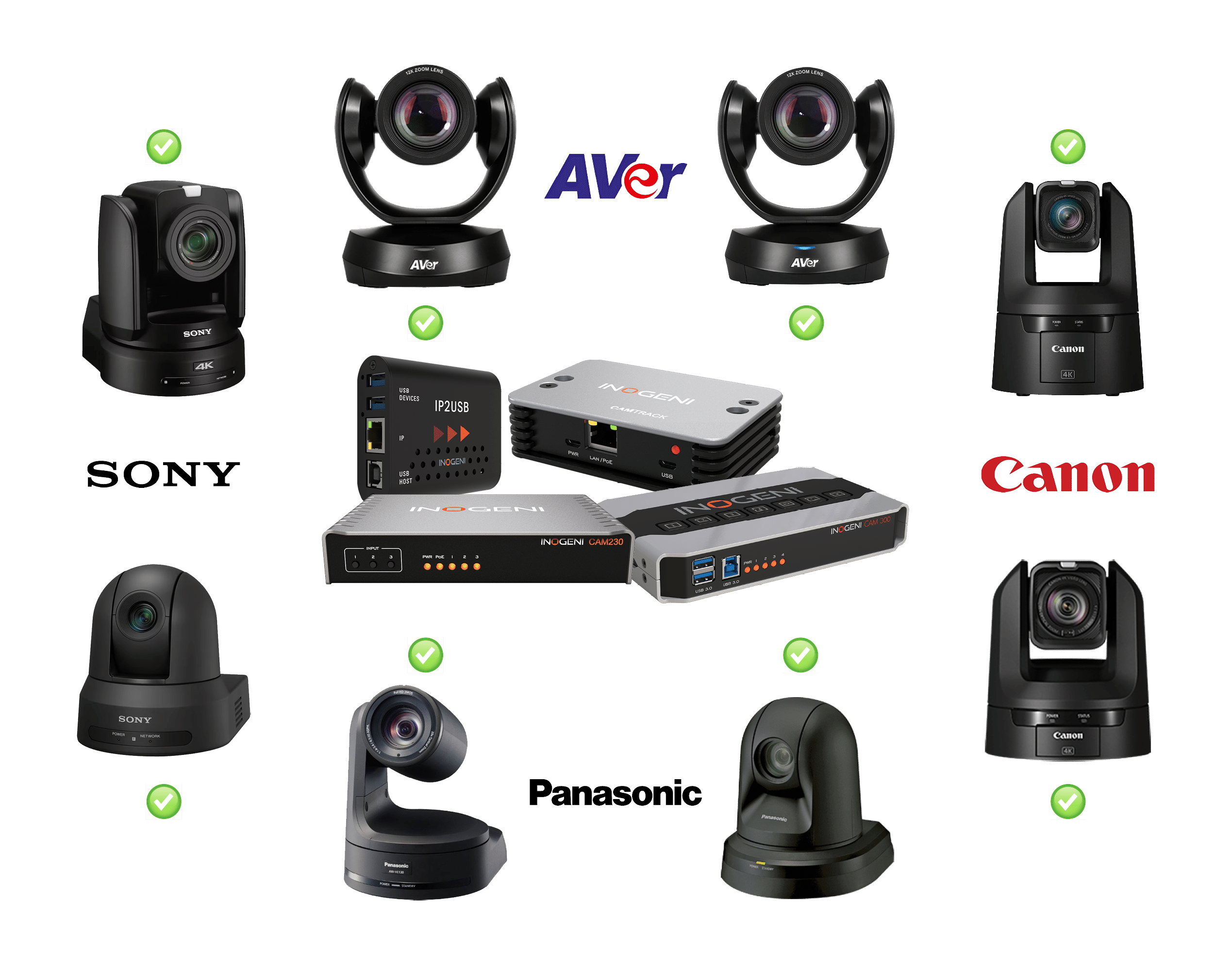

Broad PTZ and NDI Camera Compatibility with CAMTRACK
CAMTRACK is compatible with any PTZ or NDI camera supporting IP-based control protocols such as VISCA over IP, XC, RTSP, or NDI. This enables seamless integration for automated camera switching, AI-assisted auto-tracking, and precise preset control – turning any meeting or broadcast setup into a dynamic, professional-quality experience.
Below is a list of the top tested PTZ and NDI brands compatible with CAMTRACK
Canon PTZ Cameras
- Canon CR-N100 / CR-N300 / CR-N350 / CR-N400 / CR-N500 / CR-N700
-
- High-quality 4K PTZ with advanced autofocus and 15–30x optical zoom
- Compatible with CAMTRACK via Canon’s XC protocol, this system uses audio-based speaker detection to automatically identify and frame the active speaker. It keeps them in focus and within the shot by leveraging Canon’s built-in precision auto-tracking.
- Find Canon product webpages for the new CR-N350, CR-N400, and by country in the NDI Finder : CR-N100, CR-N300, CR-N500, CR-N700
-
AVer PTZ Cameras
- AVer VC520+ / CAM520 Pro / CAM520 Pro2 / TR3xxV2
- Full HD PTZ cameras with motorized zoom and pan/tilt control
- Integrates with CAMTRACK via VISCA over IP for intelligent camera control
- Product link
Panasonic PTZ Cameras
- Panasonic AW-UE150 / AW-HE40 / AW-HE130
- 4K PTZ cameras with motorized 20–30x zoom and model-dependent auto-tracking
- Integrates with CAMTRACK via VISCA over IP for intelligent camera control
- Product link
Sony PTZ Cameras
- Sony BRC-X1000 / SRG-X120 / SRG-X400
- 4K PTZ with motorized 20–30x optical zoom and auto-framing
- Compatible with CAMTRACK via VISCA over IP for automated tracking and switching
- Product Link
