INO – BUTTON KIT

BYOM mode button (INO – BUTTON KIT)

 INO – BUTTON KIT (OPTIONAL)

Function: A simple button interface to activate BYOM mode (laptop hosts the meeting)

• Requirements:
  • Connected to the unit with a simple terminal block cable included. Length options:
    • INO – BUTTON KIT – 4 m                     4 meters (12 ft)
    • INO – BUTTON KIT – 8 m                     8 meters (25 ft)
  • By default, the button will configure the device to operate in BYOM mode.

• To activate BYOM mode (laptop host)
  • The laptop must be connected via USB-C or USB-B + HDMI cables.
  • When the button is pressed, the button will illuminate, indicating the peripherals (cameras, audio or videobar) are connected to the laptop for a BYOM meeting hosted by the laptop. This is because the button doesn’t actually connect the peripherals – TOGGLE ROOMS does.
  • By pressing the button again, BYOM to the laptop will be disabled, and the host will return to the room PC as indicated by the lack of illumination.

• User controls:
  • The button controls the device through the GPI interface.
    • The device automatically detects new connections.
    • A physical button on the unit itself is used for installation by a technician.

GPI for controlling BYOM mode

TOGGLE ROOMS

• Enables easy switching between two PCs—from the room PC to the laptop and vice versa.

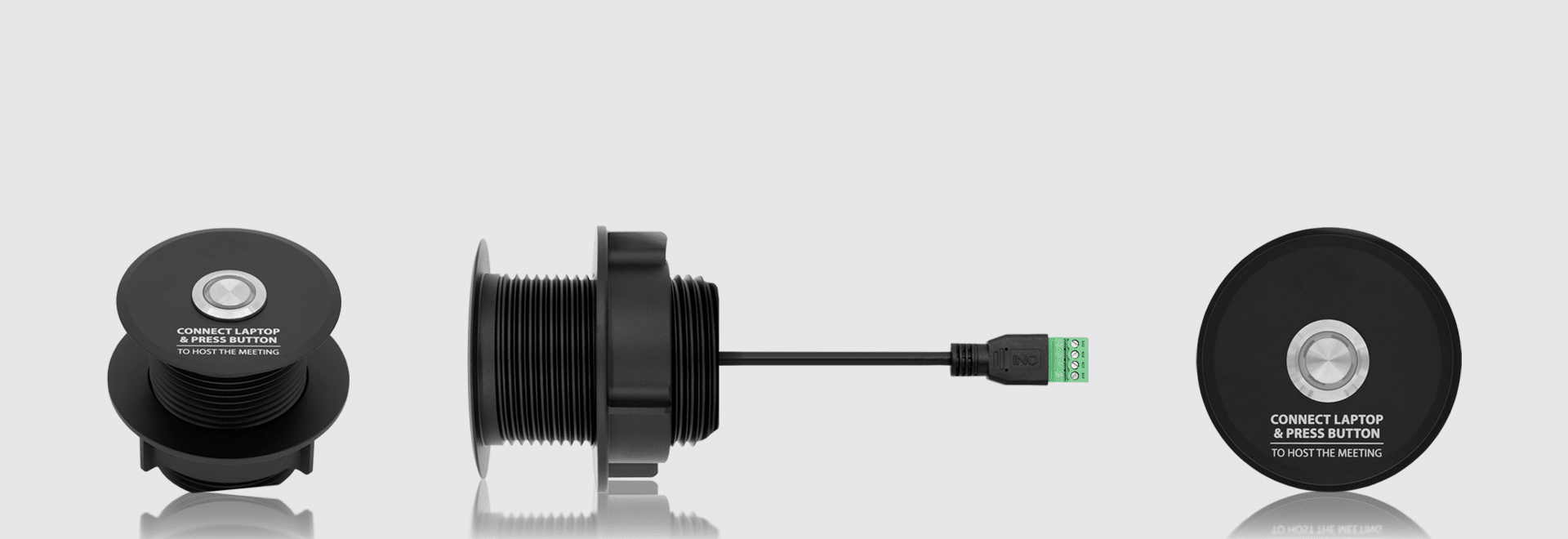

• Anodized metal button with LED ring and terminal block hardware.
• Connectivity: Linked to TOGGLE ROOMS through a simple CAT cable (not included) using terminal block connections.
• Default configuration: By default, the button configures the device to operate in BYOM mode.
• Activation process: To activate BYOM mode, the laptop must be connected via USB-C or USB-B + HDMI cables.
• Illumination indicator: When activated, the button’s LED ring illuminates, indicating the peripherals (cameras, audio, videobar and display) are connected to the laptop for a BYOM meeting.
• User controls: Operates the device via the GPI interface.
• GPI control: Manages device modes, including PC selection/BYOM activation.
• Easy plug and play connections between the Button and the TOGGLE ROOMS or the TOGGLE ROOMS XT for larger spaces.
