Application
The INO-MOUNT can be used for a wide variety of applications.
Installation steps
What you’ll need for the installation:

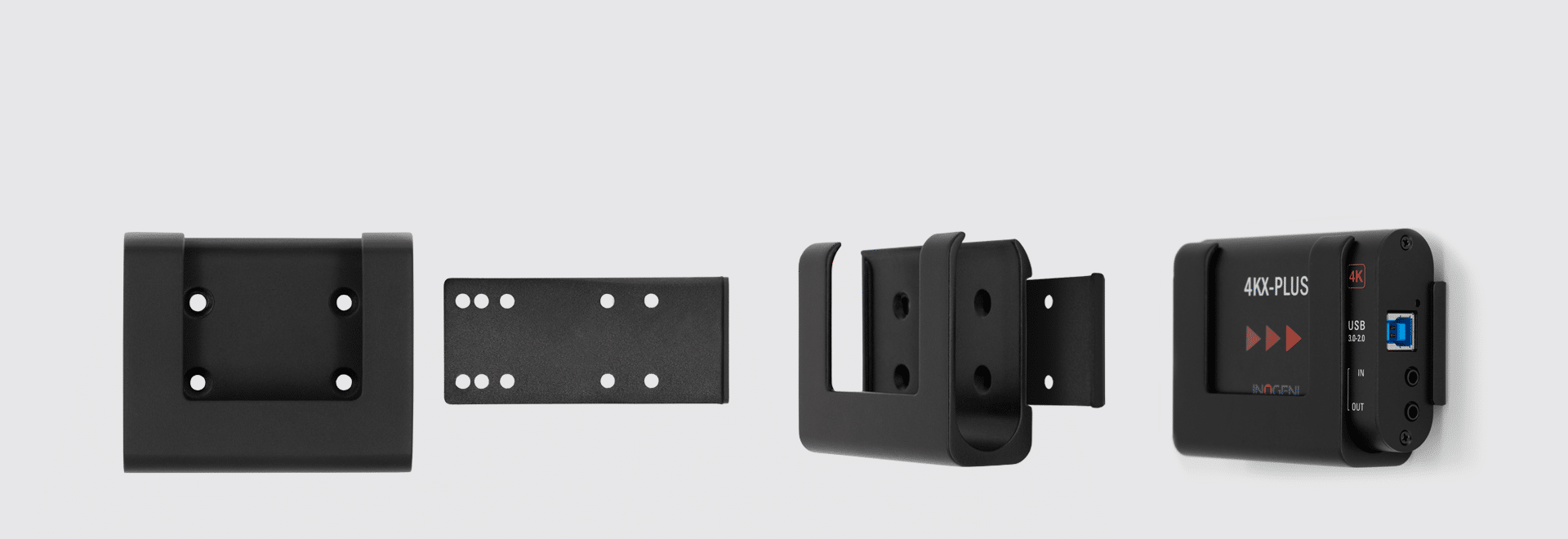

- INO-MOUNT includes:
- 1x mounting clip
- 1x mounting lock clip
- 4x screws
- One of INOGENI’s converters or extenders
- Drill and screwdriver
Instructions for mounting the INO-MOUNT
Under a table or on a wall
- Adjust the position of the metal plate according to your INOGENI unit, and use the 4x screws to lock the clip with the metal plate to the surface.
- Slide your unit into the mounting clip, with the brand and information visible to the user.
- Connect your INOGENI devices to your equipment.
In a rackmount
- Use a tie wrap and thread it through the 2 insertion holes to position the INO-MOUNT.
- Tighten the tie wrap to secure the bracket and hide the excess in the space provided at the bottom of the INO-MOUNT.
- Slide your INOGENI device (Converters or U-BRIDGE 3) into the mount.
- Connect your device.
