U-BRIDGE 3 WP

Extend your USB 3.0 devices to any INOGENI USB input, CODEC, or videoconferencing system.

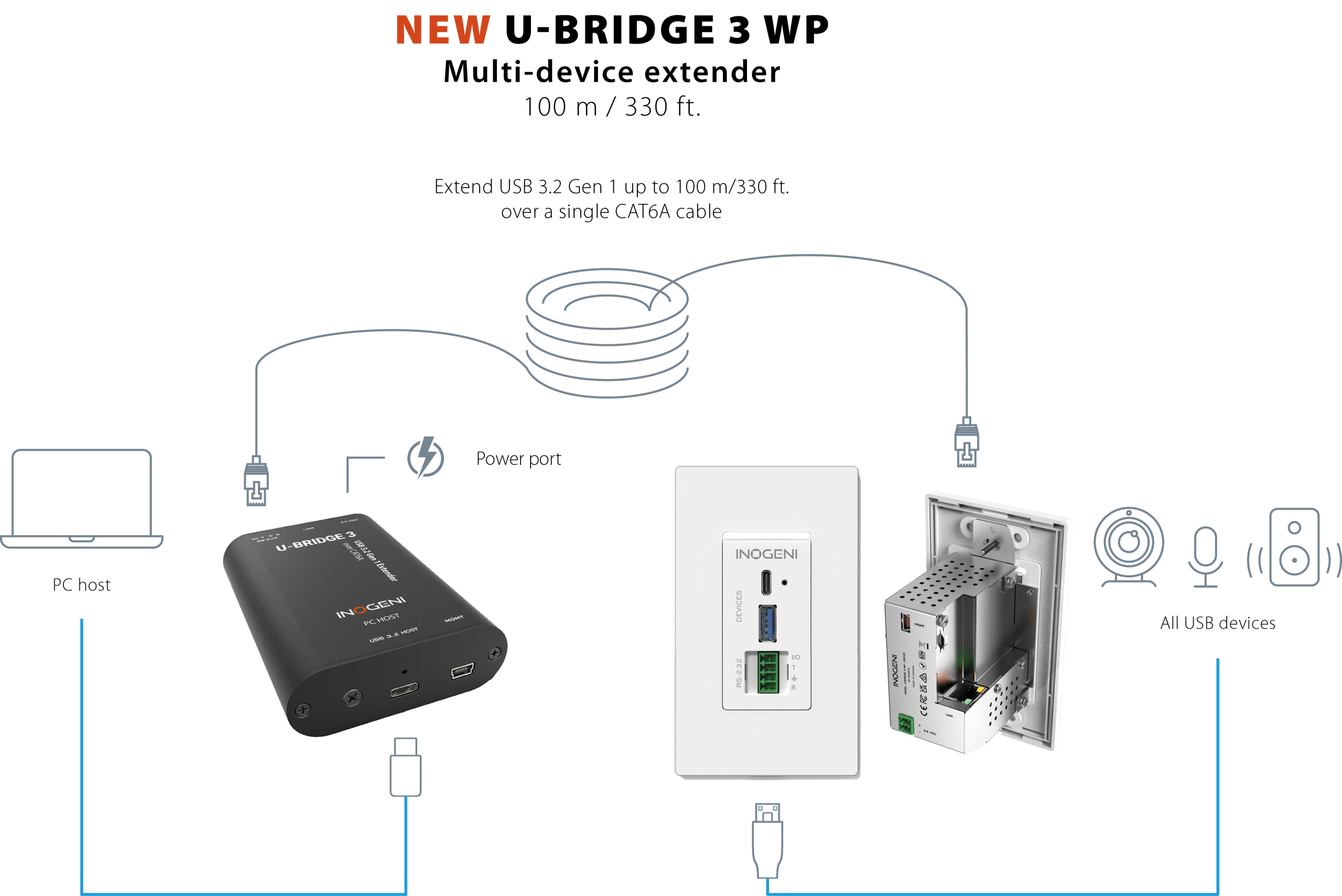

The U-BRIDGE 3 WP offers unmatched versatility and reliability and extends up to 3 USB 3.0 connections (1 USB-A and 1 USB-C) up to 100 m (330 ft.), far beyond the standard 3-meter cable limit. Designed specifically for USB 3.0 devices and systems, the U-BRIDGE 3 accommodates a range of peripherals, including cameras, microphones, audio devices, and more. Its backward compatibility with USB 2.0 ensures seamless integration with a variety of devices. It provides 1.8A that can be shared between USB ports to enhance functionality and convenience.

Operating seamlessly within any setup, the U-BRIDGE 3 WP facilitates connections to PC hosts and INOGENI devices and offers compatibility with leading videoconferencing systems, such as Microsoft Teams Rooms, Zoom Rooms, and more.

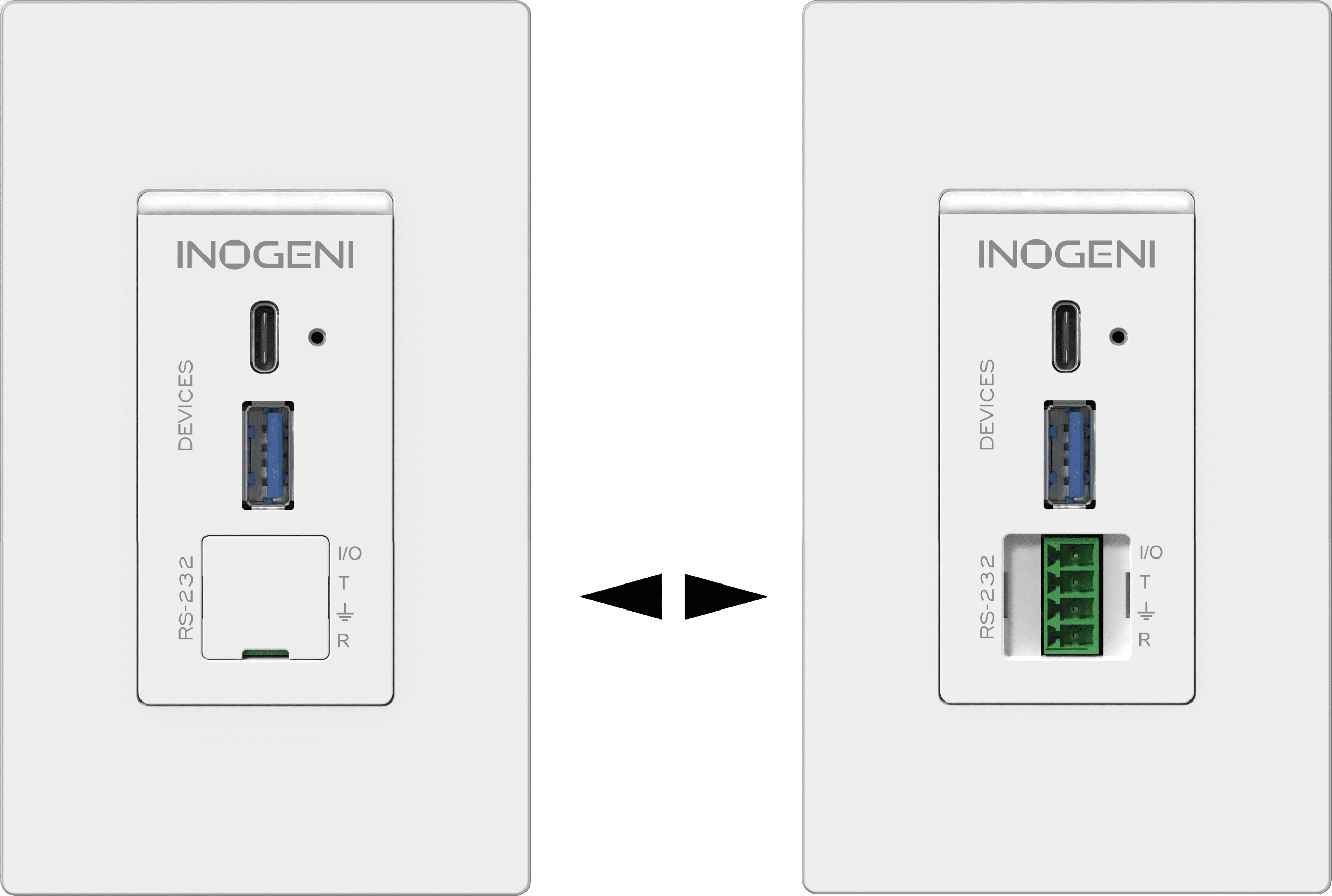

The U-BRIDGE 3 WP features an elegant, removable cap over the RS-232 port, providing a clean, professional look with easy access when needed.

The U-BRIDGE 3 WP offers versatility and reliability for USB 3.0 extensions of up to 100 m (330 ft). U-BRIDGE 3 WP enables users to extend USB connections beyond the standard 3 m (10 ft.) cable limit for USB 3.0 peripheral devices.

Designed for extension of USB 3.0 devices and systems

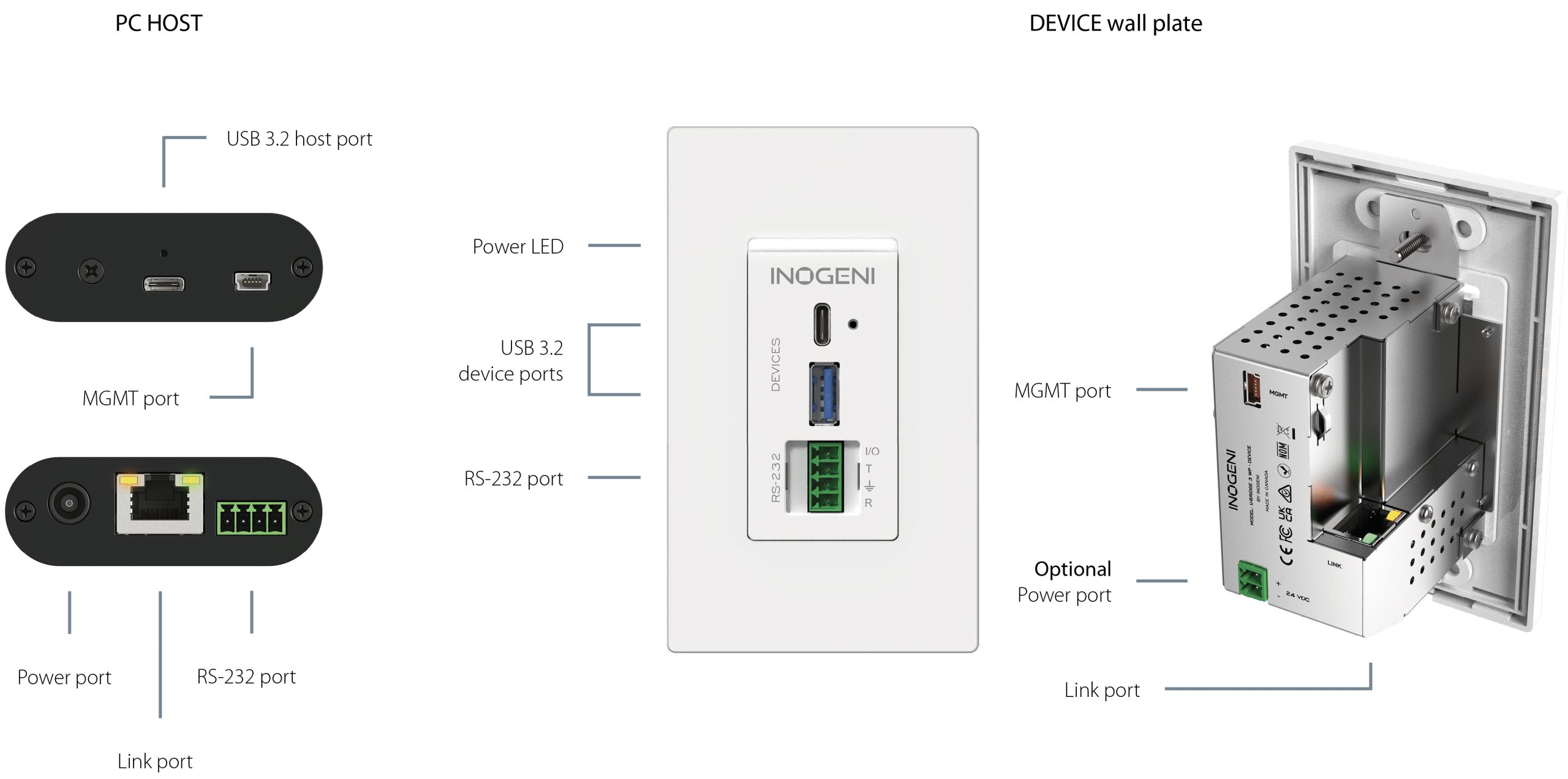

•  DEVICE wall plate side:
  • USB 3.2 Gen 1; backward-compatible with USB 3.1 Gen 1/3.0/2.0
  • 1x USB-C and 1x USB-A
  • Supports cameras, videobar, DSP, HID devices, whiteboards, microphones, audio devices, and any other USB devices (hard drives, flash drives or keyboards)
  • Provides up to 1.8A to be shared between the 3 USB ports
  • Powered by either the wall plate DEVICE or the PC host module
• PC HOST side:
  • 1 USB-C 3.2 Gen 1; backward-compatible with USB 3.1 Gen 1/3.0/2.0
  • SuperSpeed USB at 5 Gbps
  • Connect to a laptop or any UC videoconference system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS or Barco
  • Powered by either the DEVICE or the PC HOST module
• LINK
  • Up to 100 m/330 ft. extension.
  • Reliable HDBaseT extension over CAT6A cable. (Discover the INO-CAT6A cable)
  • Use PoC (power over cable) to power up the entire system from either end.
•  INOGENI devices before or after the U-BRIDGE 3 WP:
  • Mixers and switchers:  SHARE2, SHARE2U, CAM300, CAM230, TOGGLE, TOGGLE ROOMS
  • Converters: 4KX-PLUS, 4KXUSB3, 4K2USB3, HD2USB3 and the U-CAM
• Mass storage acceleration for USB 3.0 device bulk transfers.
• SuperSpeed USB^® suite of features:
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems:  Windows^®, macOS^TM, and Linux^®.
• Easy to install with a mounting solution
• Integrated cable tie slot to secure the CAT6A cable to the device using your own tie wrap — for a clean, secure, and worry-free installation.
• Includes one Decora-style wall plate (North American 1-gang format), replaceable for custom installations or color matching.
• The U-BRIDGE 3 WP uses the standard North American 1-gang format, but it is also certified for international use (CE, FCC, UKCA, RoHS, IEC 62368, SoV, RCM, NOM).
• Warranty
  • 5 years

INOGENI has developed an advanced testing procedure to ensure reliability and avoid interoperability issues for the USB 3.0 extension. U-BRIDGE 3 WP connects a USB 3.0 camera and device or an INOGENI device to any PC or videoconferencing system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs as well as Room PCs from Lenovo, Poly, Crestron, Cisco, Logitech, MAXHUB, Q-SYS and Barco.

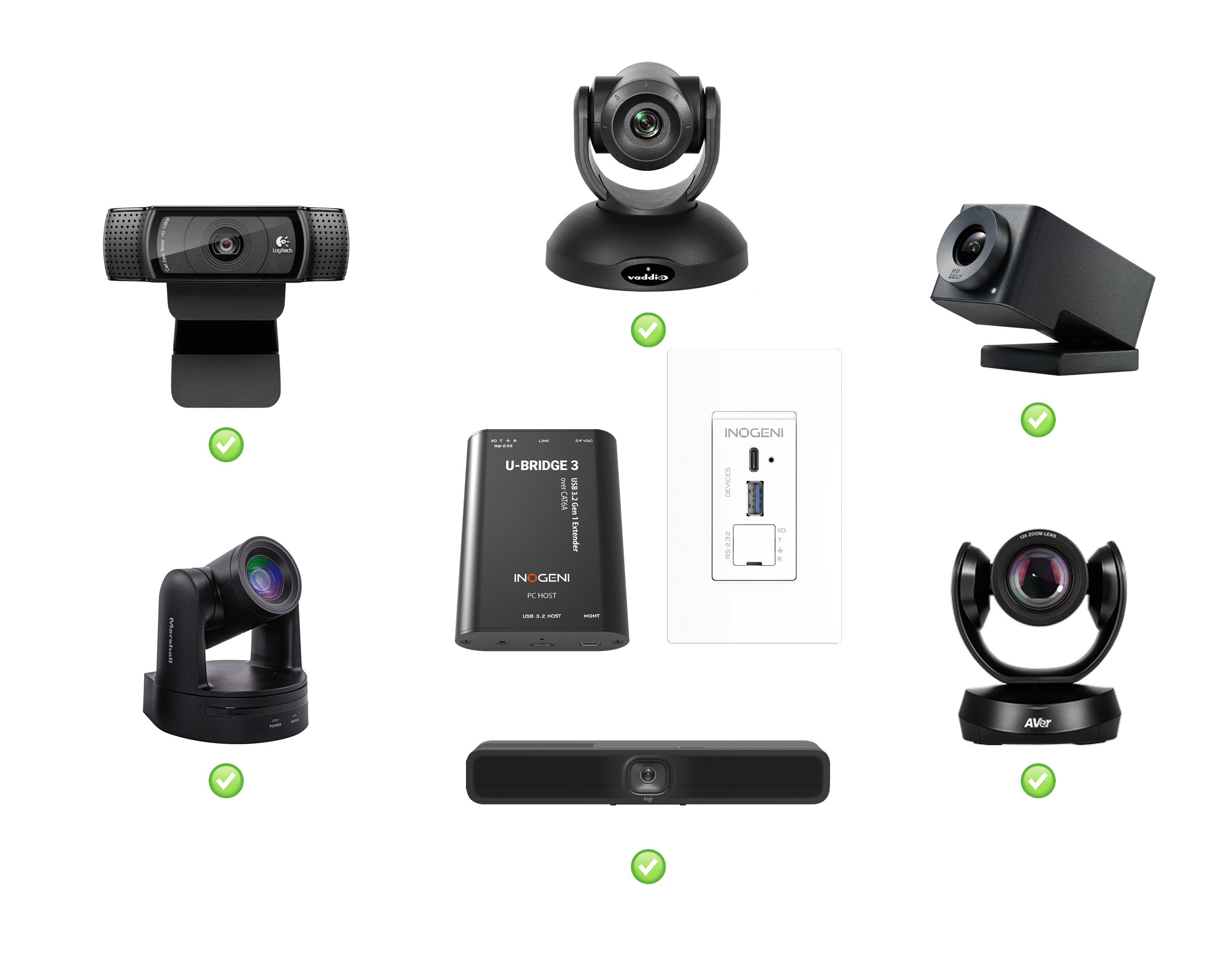

The U-BRIDGE 3 WP is fully compatible with all USB cameras (USB3/5 Gbps and is backward-compatible with USB 2.0), including professional-grade equipment, such as AVer, Logitech, Jabra, ClearOne, Huddly, HuddleCamHD, PTZOptics, Lumens, Marshall, and web cameras.
