IP2USB – IP-to-USB converter for professional AV setups with AVoIP support
(Available at the end of 2025)
Next-level AV integration with IP-to-USB conversion

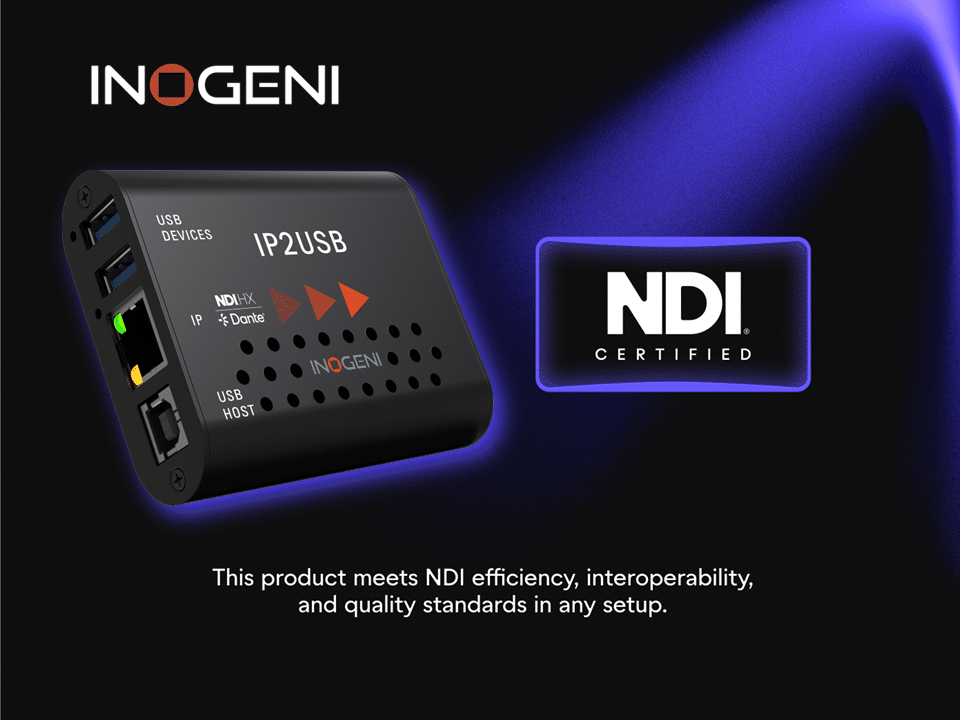

The INOGENI IP2USB is a specialized converter that allows users to connect sophisticated IP-based cameras to USB peripherals, eliminating the need for costly USB extenders. This solution is ideal for scenarios involving cameras with IP output. It enables a direct connection to the device without requiring an Ethernet switch, providing a simplified, cost-effective solution for integrating cameras and audio devices.
The IP2USB supports multiple AVoIP standards, including NDI/NDI HX and RTSP, allowing for seamless transmission of video and audio across networks, while ensuring low latency and high quality. This enables users to eliminate DSP systems, reducing costs while maintaining high-performance audio and video integration.
High-performance IP connectivity and USB interface
- Convert IP to USB and HDMI multiple AVoIP standards, including NDI, NDI HX and RTSP
- USB Host: 1x USB 2.0 Type-B for USB host PC connection
- UVC 1080p30 MJPEG video output
- UAC audio I/O support: Facilitates bi-directional audio via USB

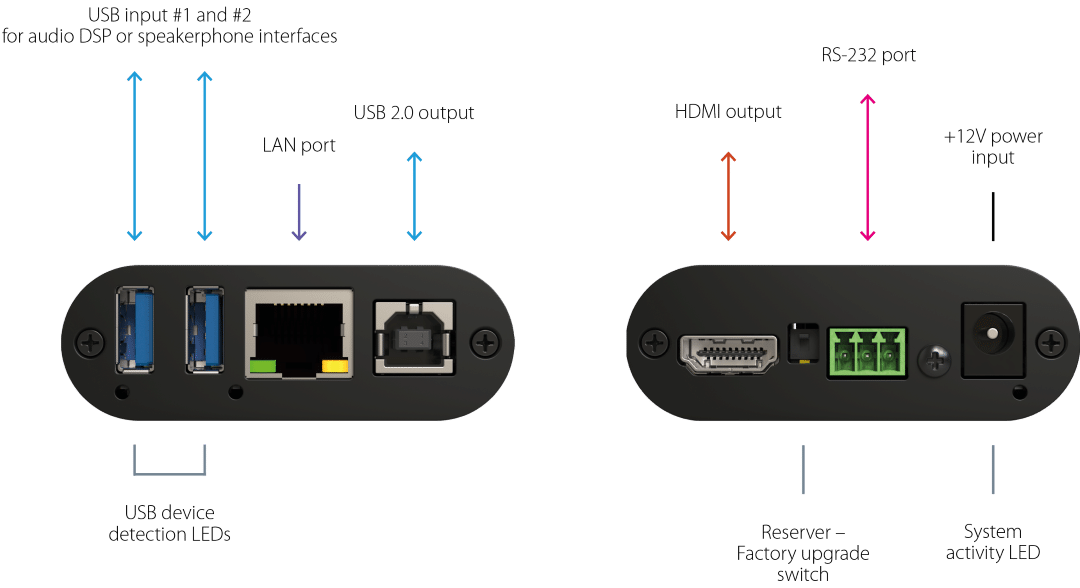

Connectivity and USB interface
- USB devices: 2x USB3.0/USB2.0 Type-A for connection to peripherals, such as DSP, HID devices (keyboard, mouse, touch screen)
- HDMI: HDMI 1.4 output up to 2160p30 with audio
- Audio integration: Support for USB audio such as speakerphone/DSP to USB or HDMI sink
Seamless integration and flexible control

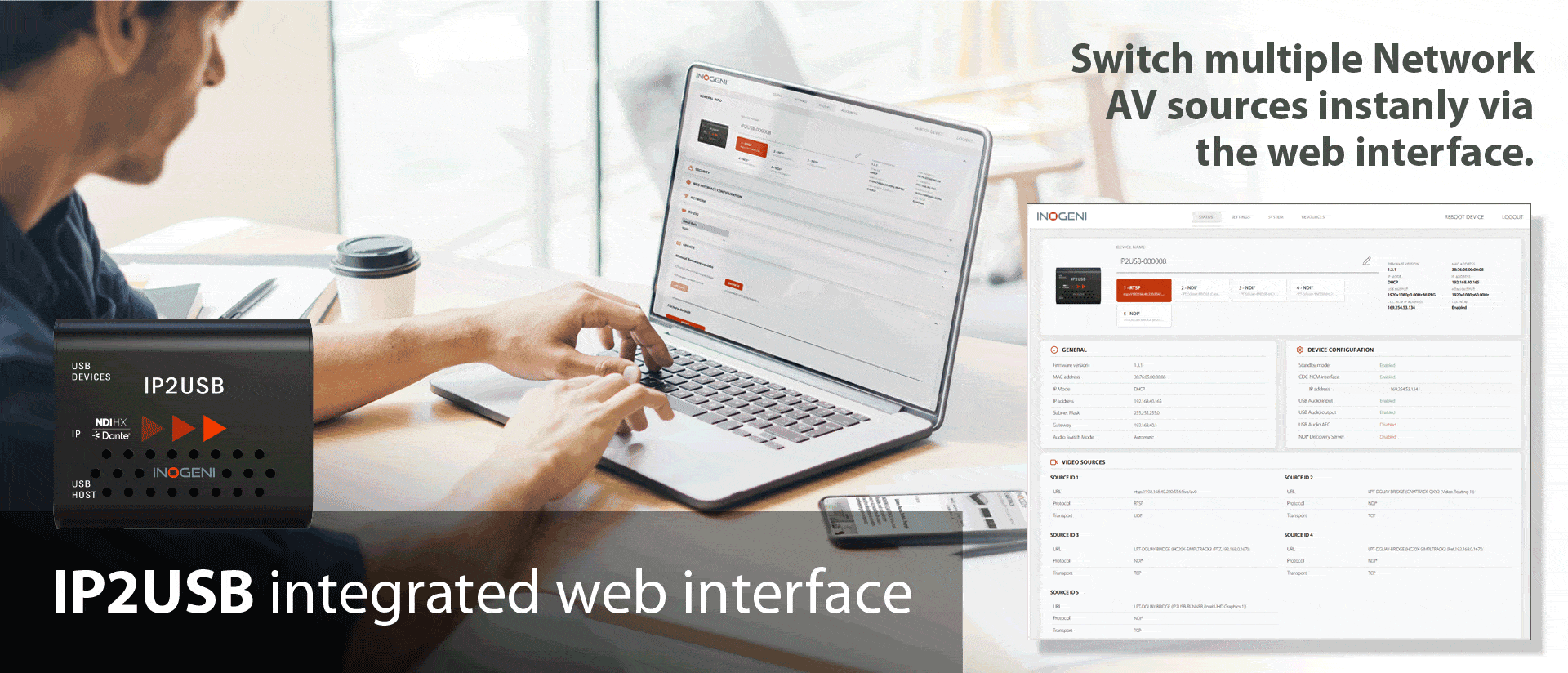

- Device can be controlled via IP, RS-232, or USB interfaces
- Camera control: Visca, PTZ, preset commands
- LED indicators for power and RJ45 connection status
- Power: +12V power input from an external source
Versatile and reliable performance
- Supports NDI® HQ (1080p30 in I-frame, low latency), NDI® HX/HX2/HX3 (1080p60 in H.264/H.265), RTSP standards
- Seamless switching between multiple AVoIP sources with low latency
- Audio processing: Supports HDMI and USB-based audio routing
Reliable and efficient
- Direct connection using IP-based communication, reducing the need for expensive DSP systems
- Flexible solution for both video and audio integration, with the ability to route audio to HDMI and USB.
- Supports a wide range of peripherals and devices for a complete pro-AV solution
- Backed by a 5-year warranty
- Made in Canada and TAA-compliant

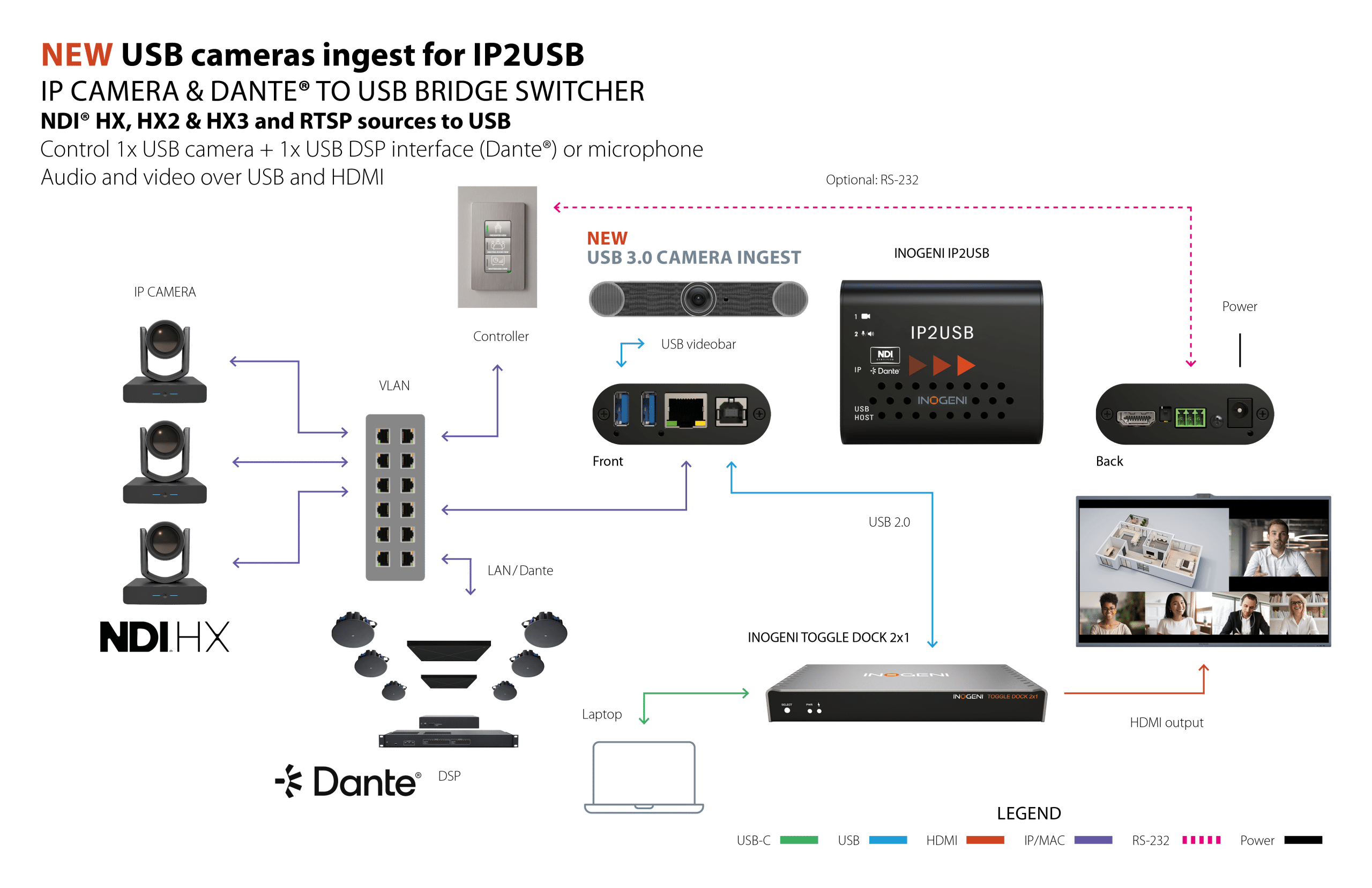

How it works

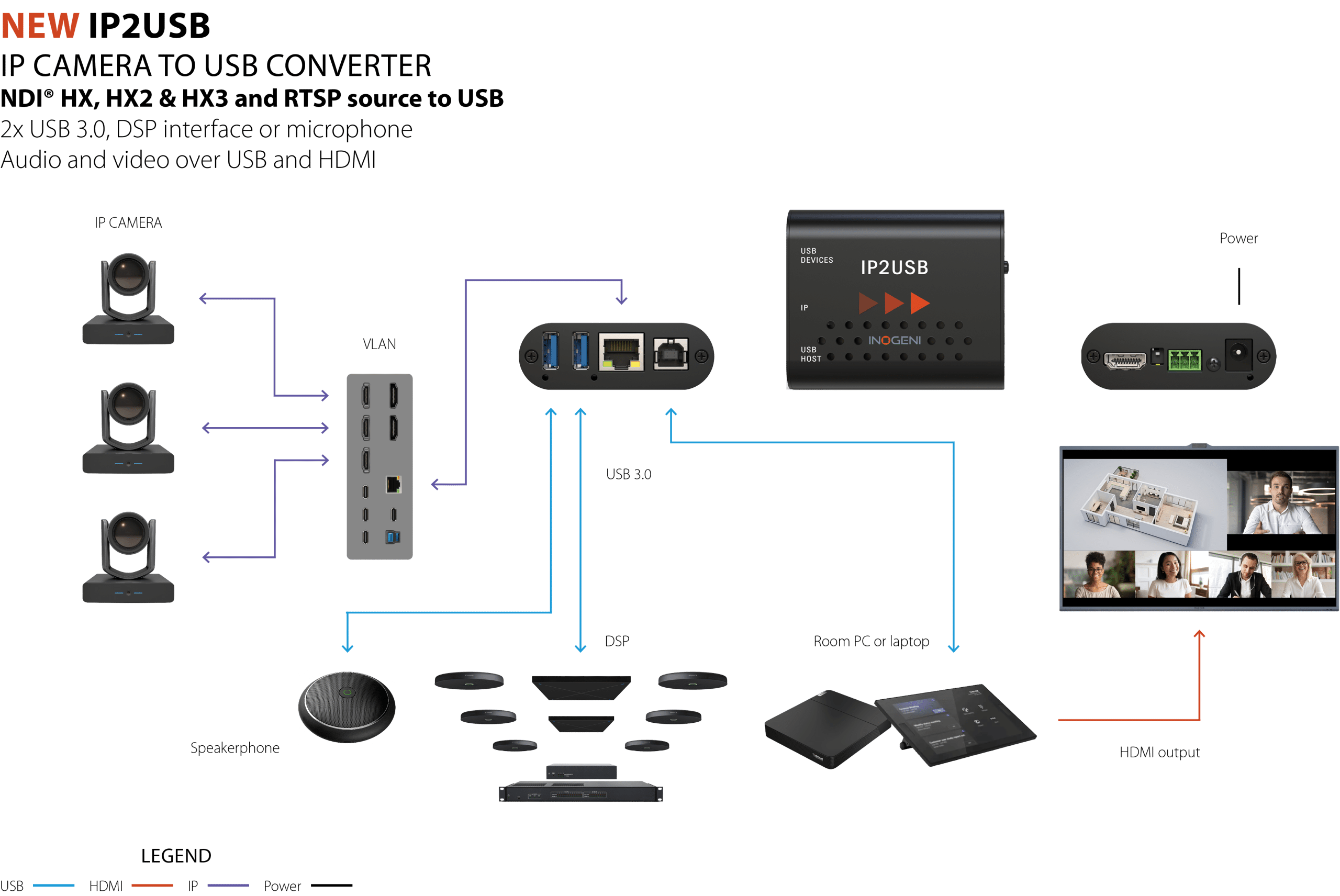

The INOGENI IP2USB allows you to easily connect IP-based cameras to a laptop or UC system via USB, eliminating the need for costly USB extenders. The device converts AVoIP signals, such as NDI/NDI HX and RTSP, into USB and HDMI outputs, simplifying integration with USB peripherals and video conferencing equipment. By leveraging IP-based communication, the IP2USB provides high-quality, low-latency video and audio streaming to laptops or CODEC systems, ensuring seamless connectivity in professional AV setups.

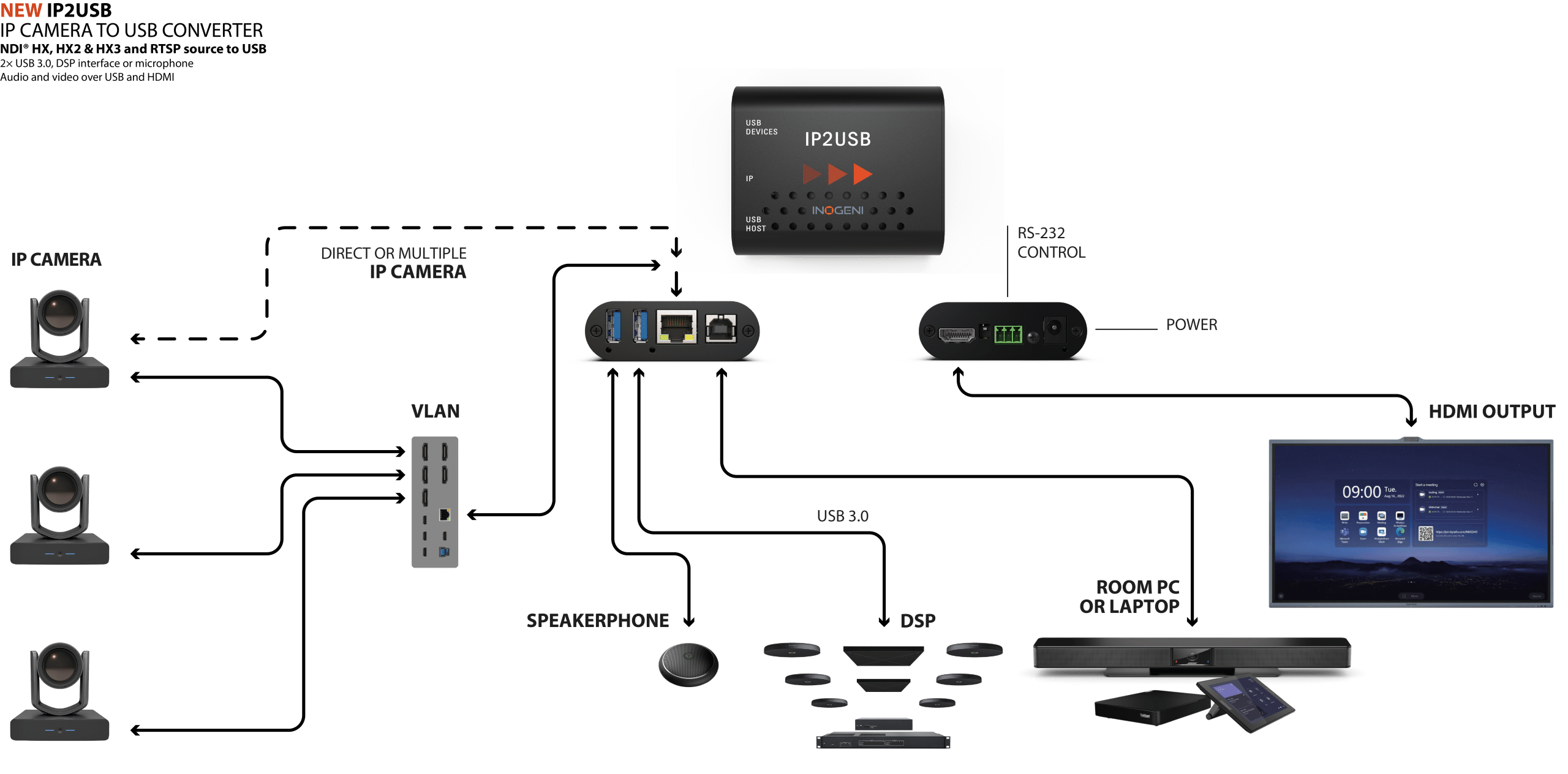

For environments with multiple cameras, the IP2USB can aggregate the signals from each camera, routing them over a single Ethernet connection to your laptop or codec system. This allows users to connect sophisticated cameras directly to their USB-enabled video conferencing hardware or software, without the need for additional infrastructure. The device also supports PTZ controls making it an ideal choice for dynamic, multi-camera setups.
In addition to video, the IP2USB offers full audio integration, with support for both UAC audio I/O over USB and HDMI audio output. This allows users to easily route audio from USB peripherals to HDMI sinks or USB-connected systems. With its flexible IP, USB, and RS-232 control options, the IP2USB is a versatile solution that simplifies pro-AV setups while providing reliable, professional-grade performance.
