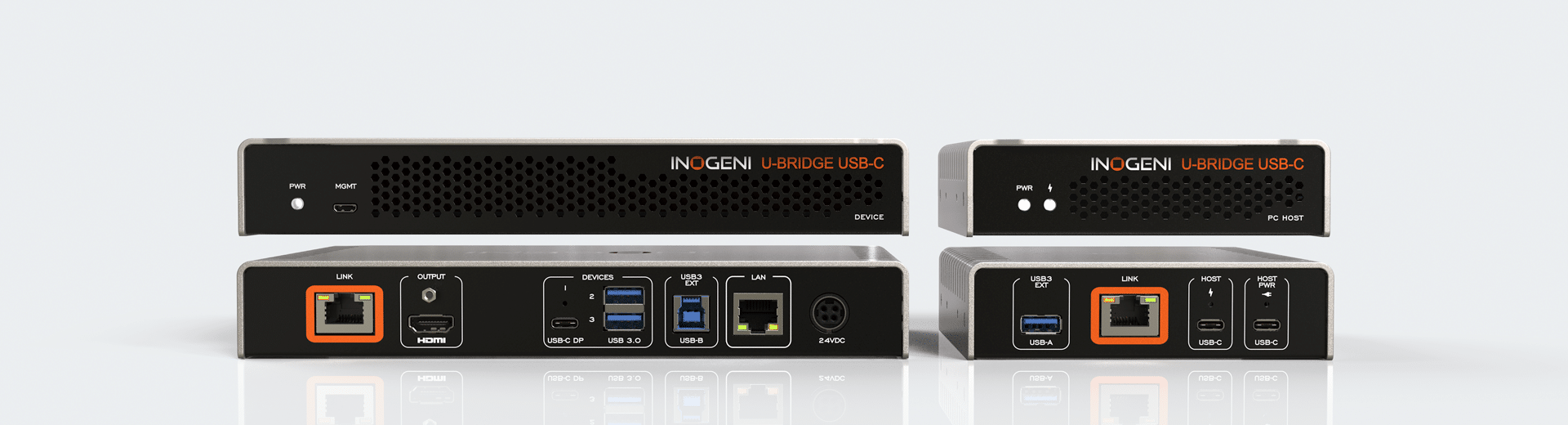

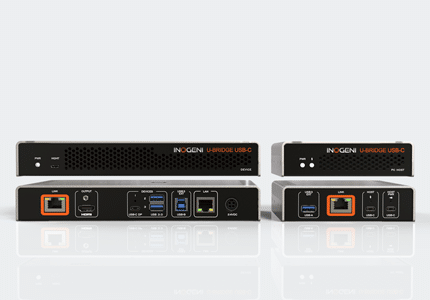

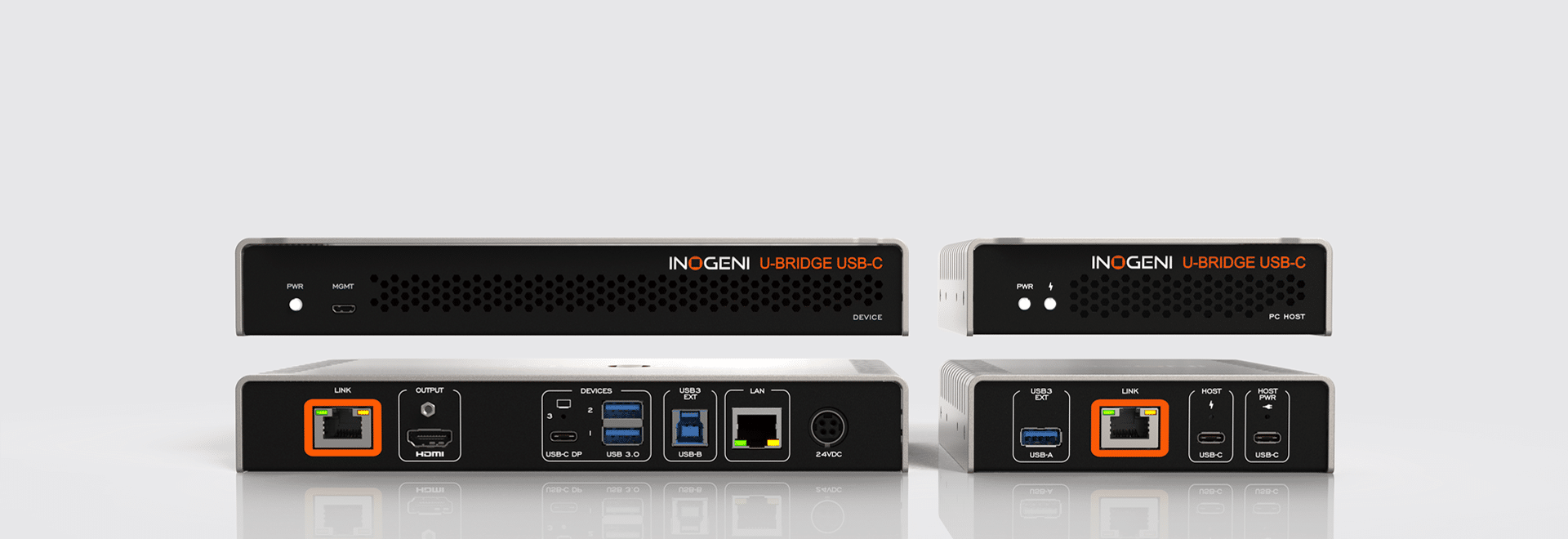

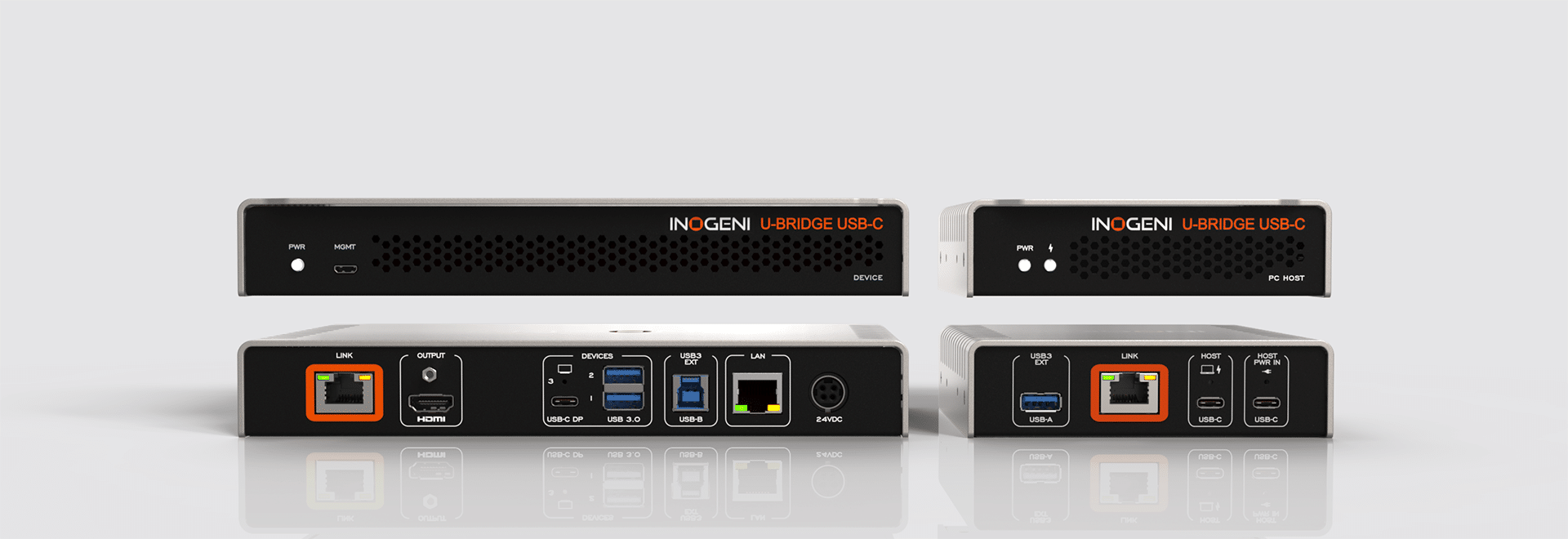

U-BRIDGE USB-C – 4K60 USB-C extender up to 70 m (230 ft.) over CAT6A with 4K60 HDMI
(Available at the end of 2025)
Next-level BYOM flexibility with USB-C for AV extension
The new INOGENI U-BRIDGE USB-C is a purpose-built extender that extends full USB-C functionality—including USB 2.0, power, and DisplayPort Alternate Mode—up to 70 meters (230 feet) over a single CAT6A cable via HDBaseT® proven technology, while also enabling Ethernet LAN connectivity for laptop connectivity, control and management. It is ideal for extending USB-C laptops to videoconferencing gear, room displays, and networks in modern meeting spaces. The extender can connect to an all-in-one videobar that supports BYOM.
The U-BRIDGE USB-C provides reliable long-distance extension while maintaining high-quality, uncompressed video. It extends the videobar’s UVC/UAC interface (camera and audio) and simultaneously sends video content to the in-room display.
High-performance audio/video connectivity and 100W charging
- USB-C extension over CAT6A U/FTP cable up to 70 m (230 ft)
- Uncompressed video signal via HDBaseT® proven technology
- Supports USB 2.0 and DisplayPort Alternate Mode
- PoE powers the PC host module from the device module
- Optional USB-C power supply enables 100W laptop charging
- 2x USB 3.0 device ports
- USB 2.0 data rate: up to 480 Mbps when extending USB devices
- Note: If USB 3.2 Gen 1 connectivity is required, users can link both units via the USB3-EXT ports and use the INOGENI U-BRIDGE 3 to extend SuperSpeed USB 3.2 Gen 1 signals.
- 4K60 HDMI output
- Compatible with HDCP 2.3, HDMI 2.0b, and DVI 1.0
- Advanced video processing with 4:4:4 and 4:2:2 chroma subsampling
Versatile USB and video extension
- Supports all USB peripherals, including webcams, videobars, audio devices, and HID
- Ideal for systems with USB-C connectivity, such as Cisco Room Kit EQ or Logitech MeetUp 2
- Provides up to 1.8A of shared USB power
- IP interface with DHCP/static IP support for control and network bridging
Full-featured integration and simple deployment

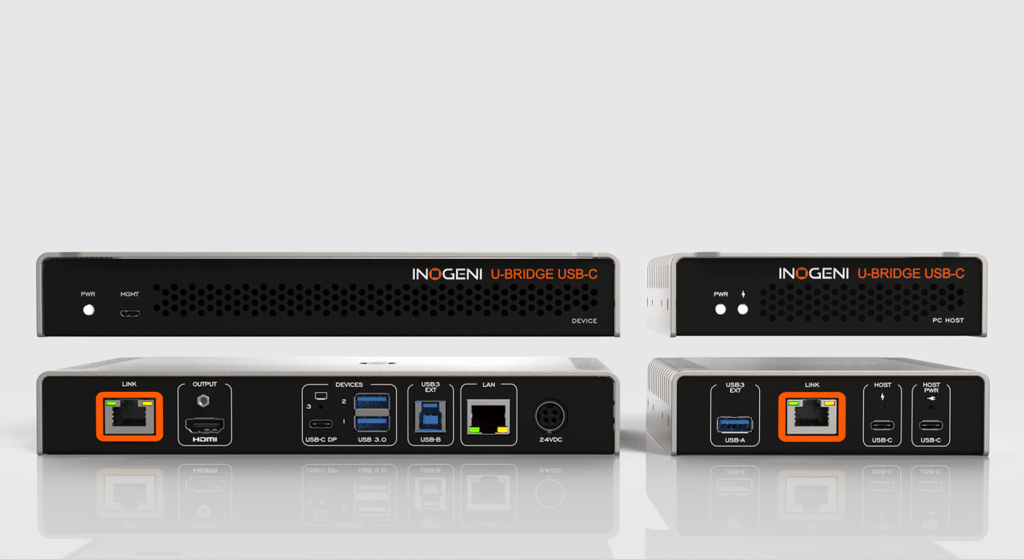

- DEVICE module includes
- 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
- 2x USB-A 3.0 for camera, videobar or speakerphone
- 1x USB3-B for USB 3.0 extension (when necessary)
- 1x 4K60 HDMI output
- 2x RJ-45 for LAN and for CAT6A HDBaseT Link to the PC HOST module
- Power 12V and PoE to the PC host module over CAT6A Link
- PC HOST module includes
- 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
- 1x USB-C ports for laptop charging up to 100W
- 1x USB3-A for USB 3.0 extension
- 1x RJ-45 for HDBaseT Link to the device module
- USB-C and HDMI connectors with lock screws for secure attachment
- Compact, professional-grade aluminum housing with mounting brackets
- Plug-and-play compatibility with Windows, macOS, and Linux—no drivers required
Reliable performance
- Direct connection up to 70 m (230 ft.) using CAT6A U/FTP cable
- LED indicators for power and charging status
- Backed by a 5-year warranty
- Made in Canada and TAA-compliant

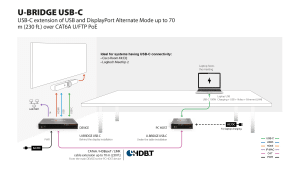

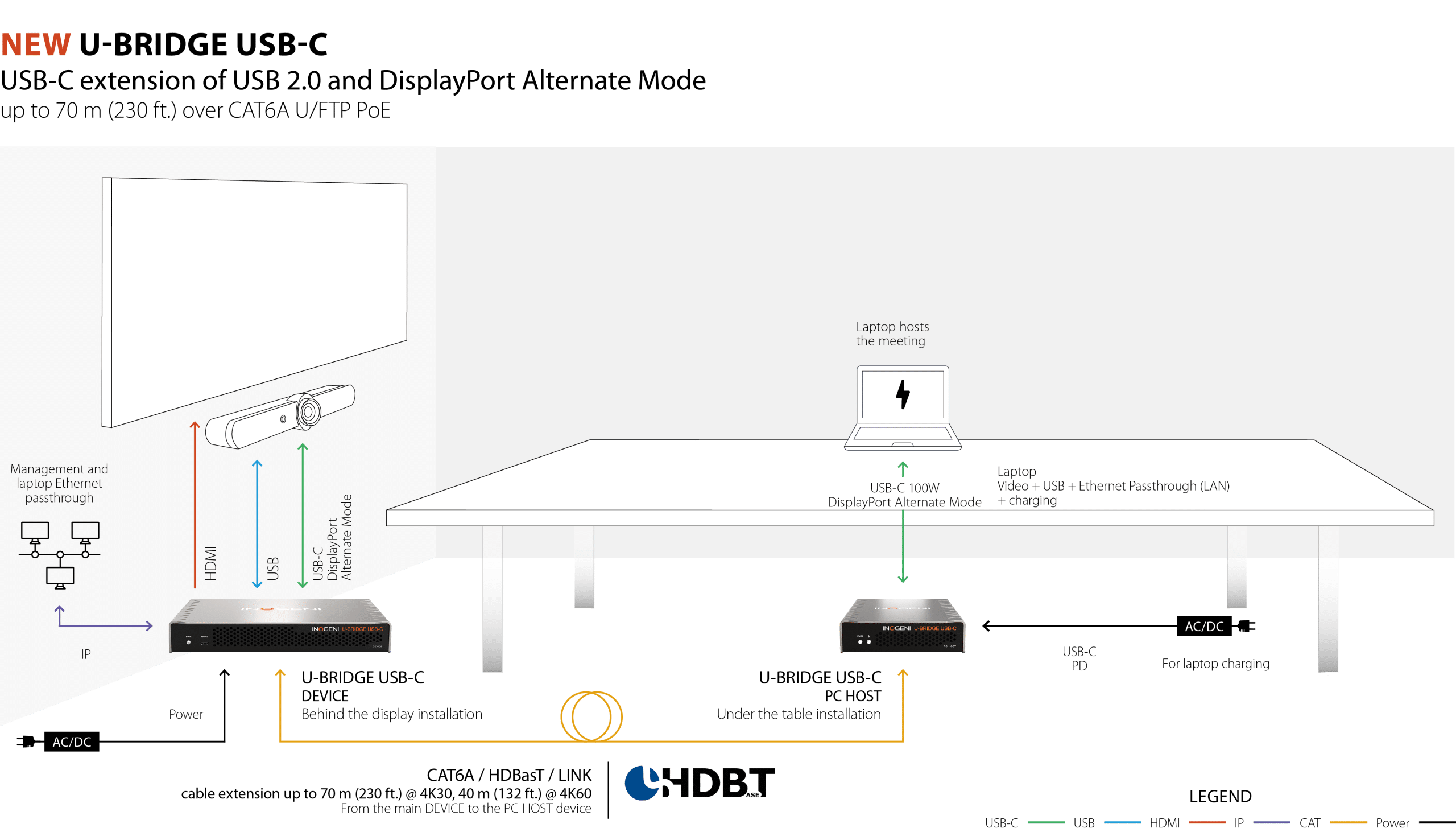

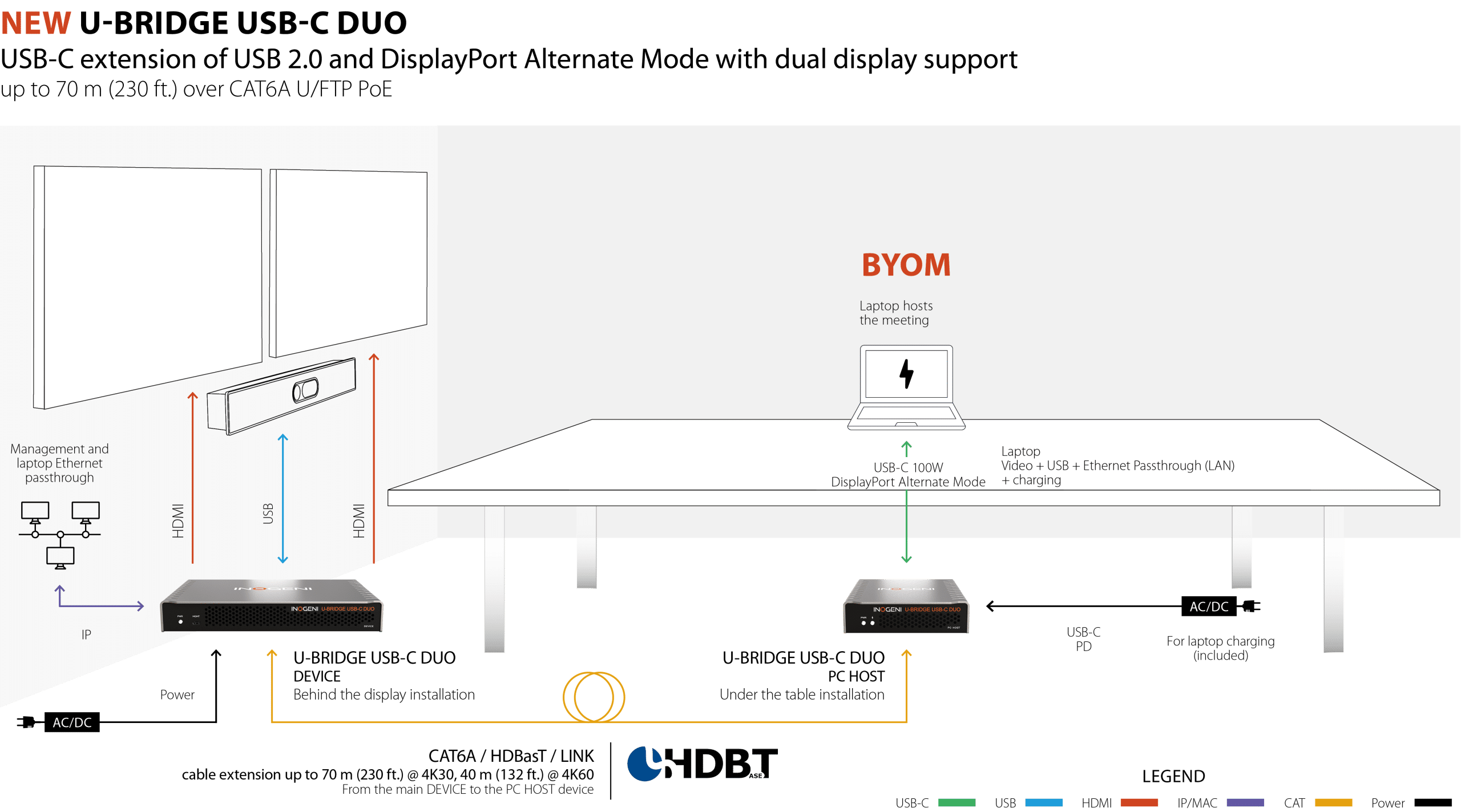

How it works
Extend your USB-C videobar UC system, CODEC, or videoconferencing system to your laptop up to 70 meters (230 feet) using the U-BRIDGE USB-C.
The U-BRIDGE USB-C extender is specifically designed to extend USB-C functionality, including USB data, DisplayPort Alternate Mode, power, and Ethernet, from your laptop to your USB-C-equipped videobar or CODEC. With the capability to extend connections up to 70 meters (230 feet) over a single CAT6A cable, it guarantees reliable performance and high-quality, uncompressed video at 4K60 HDMI output.
Perfect for BYOM setups, this solution allows seamless integration with your videoconferencing system by transmitting camera and audio via the UVC/UAC interface of your videobar while simultaneously sending video content to the room display. It also provides up to 1.8A of USB power across the connected devices for stable performance and charging.
Compatible with leading videoconferencing platforms, such as Microsoft Teams Rooms, Zoom Rooms, and more, the U-BRIDGE USB-C is your go-to solution for extending your USB-C videobar or CODECs to your laptop for enhanced meeting productivity.
