U-BRIDGE USB-C
4K60 USB-C extender up to 40 m (132 ft.) over CAT6A
(Available Q2-2026)
U-BRIDGE USB-C DUO
4K60 USB-C extender up to 40 m (132 ft.) over CAT6A with dual-screen extended desktop functionality
(Available Q3-2026)
Both 100W laptop charging and full USB-C extension—including USB 2.0 and DisplayPort Alternate Mode
Next-level BYOM flexibility with USB-C for AV extension
The new INOGENI U-BRIDGE USB-C is a purpose-built extender that extends full USB-C functionality—including USB 2.0, power, and DisplayPort Alternate Mode—up to 70 meters (230 feet) over a single CAT6A cable via HDBaseT® proven technology, while also enabling Ethernet LAN connectivity for the laptop, control and management. It is ideal for extending USB-C laptops to videoconferencing equipment, for room displays, and with networks in modern meeting spaces. The extender can connect to an all-in-one videobar that supports BYOM.
The U-BRIDGE USB-C provides reliable long-distance extension while maintaining high-quality, uncompressed video. It extends the videobar’s UVC/UAC interface (camera and audio) and simultaneously sends video content to the in-room display.
Tested and proven fully compatible with USB-C systems from Lenovo, Cisco, Poly, Logitech, and ClickShare. Dicover the U-BRIDGE USB-C DUO delivers the same robust technical features as the standard single-display model, now enhanced with a second HDMI output for seamless dual-display and extended desktop functionality.
High-performance audio/video connectivity and 100W charging
- USB-C extension over CAT6A U/FTP cable up to 70 m (230 ft.)
- Uncompressed video signal via HDBaseT®’s proven technology
- Supports USB 2.0 and DisplayPort Alternate Mode
- PoE powers the PC host module from the device module
- USB-C power supply enables 100W laptop charging
- 2x USB 3.0 device ports
- USB 2.0 data rate: up to 480 Mbps when extending USB devices
- Note: If USB 3.2 Gen 1 connectivity is required, users can link both units via the USB3-EXT ports and use the INOGENI U-BRIDGE 3 to extend SuperSpeed USB 3.2 Gen 1 signals.
- 4K60 HDMI output
- Compatible with HDCP 2.3, HDMI 2.0b, and DVI 1.0
- Advanced video processing with 4:4:4 and 4:2:2 chroma subsampling
Versatile USB and video extension
- Supports all USB peripherals, including webcams, videobars, audio devices, and HID
- Ideal for systems with USB-C connectivity, such as Lenovo Core Gen 2, Cisco Room Bar Pro, Cisco Room Kit EQ, Poly G62, Logitech MeetUp 2 and ClickShare CX50 Gen 2.
- Provides up to 1.8A of shared USB power
- IP interface with DHCP/static IP support for control and network bridging

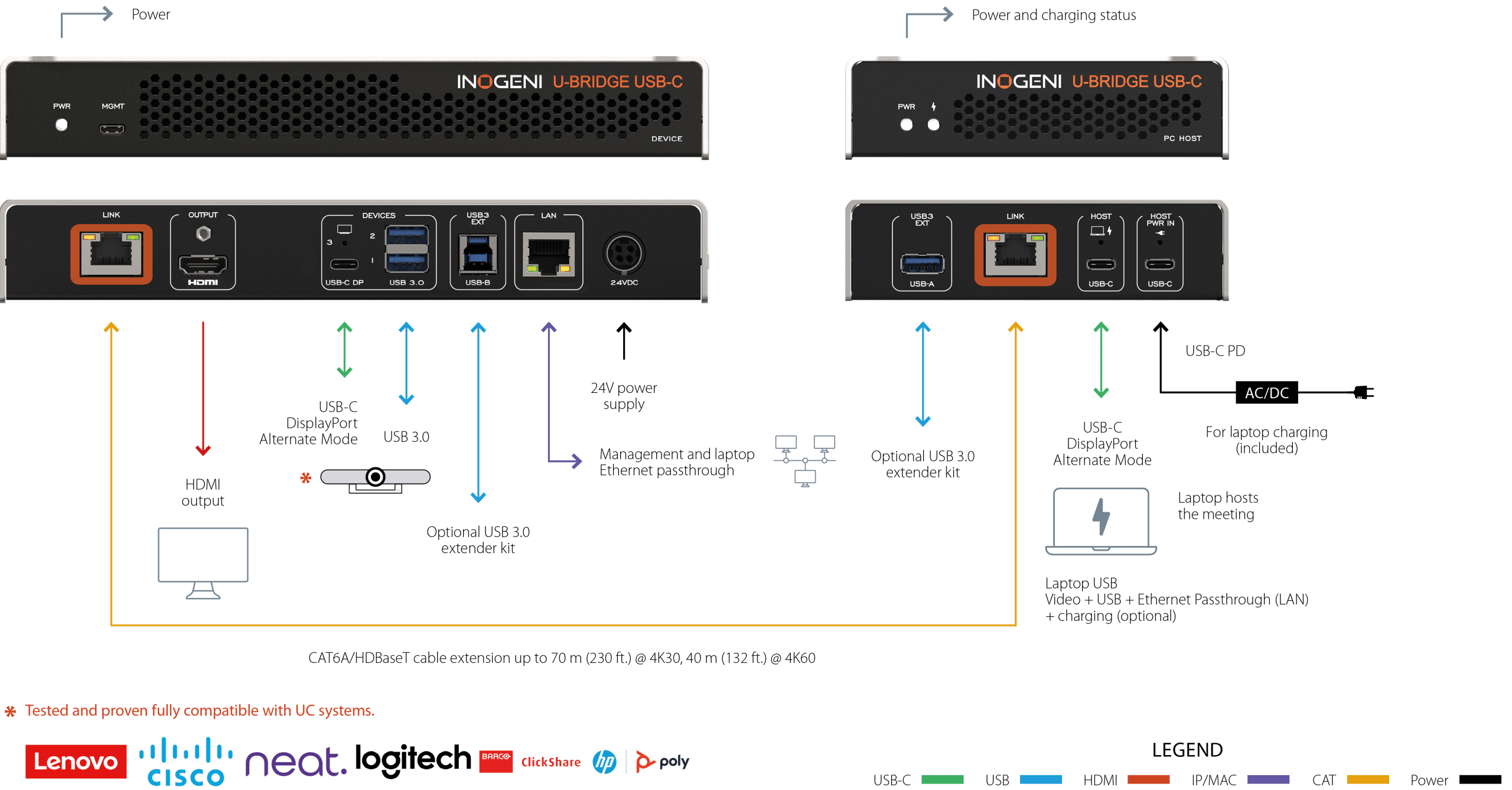

Full-featured integration and simple deployment
- The device module includes:
- 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
- 2x USB-A 3.0 for cameras, videobars or speakerphone s
- 1x USB3-B for USB 3.0 extension (when needed)
- 1x 4K60 HDMI output
- 1x RJ-45 for LAN control
- 1x RJ-45 for CAT6A HDBaseT Link to the PC HOST module
- Power 12V and PoE to the PC host module over a CAT6A link
- The PC host module includes:
- 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
- 1x USB-C ports for laptop charging up to 100W
- 1x USB3-A for USB 3.0 extension
- 1x RJ-45 for HDBaseT Link to the device module
- USB-C and HDMI connectors with lock screws for secure attachment
- Compact, professional-grade aluminum housing with mounting brackets
- Plug-and-play compatibility with Windows, macOS, and Linux—no drivers required
Reliable performance
- Direct connection up to 70 m (230 ft.) using CAT6A U/FTP cable
- LED indicators for power and charging status
- Backed by a 5-year warranty
- Made in Canada and TAA-compliant

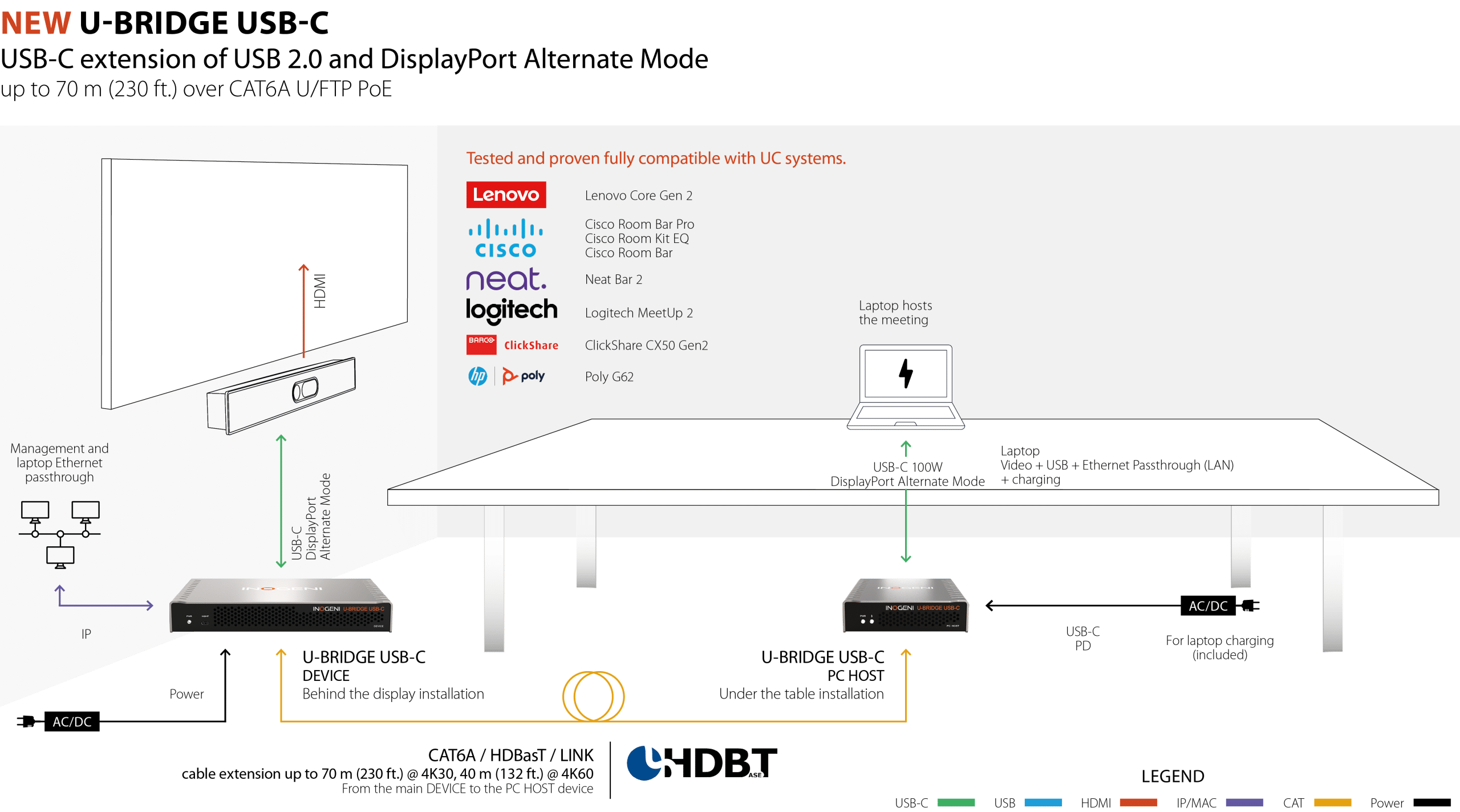

How it works
Extend your USB-C videobar UC system, CODEC, or videoconferencing system to your laptop up to 70 meters (230 feet) using the U-BRIDGE USB-C.
The U-BRIDGE USB-C extender is specifically designed to extend USB-C functionality, including USB data, DisplayPort Alternate Mode, power, and Ethernet, from your laptop to your USB-C-equipped videobar or CODEC. With the capability to extend connections up to 70 meters (230 feet) over a single CAT6A cable, it guarantees reliable performance and high-quality, uncompressed video at 4K60 HDMI output.
U-BRIDGE USB-C: 4K60 extender with single HDMI output
U-BRIDGE USB-C DUO: 4K60 extender with dual HDMI and extended desktop support
Perfect for BYOM setups, this solution allows seamless integration with your videoconferencing system by transmitting camera and audio via the UVC/UAC interface of your videobar while simultaneously sending video content to the room display. It also provides up to 1.8A of USB power across the connected devices for stable performance and charging.
Compatible with leading videoconferencing platforms, such as Microsoft Teams Rooms, Zoom Rooms, and more, the U-BRIDGE USB-C is your go-to solution for extending your USB-C videobar or CODECs to your laptop for enhanced meeting productivity.
- LINK
- Up to 70 m (230 ft.) using CAT6A U/FTP cable
- Reliable HDBaseT extension over CAT6A U/FTP cable. (Discover the INO-CAT6A cable)
- Use PoC (power over cable) to power up the entire system from either end.
- INO-CAT6A cable: Unmatched Performance & Stability
- INOGENI recommends using the INO-CAT6A cable to ensure optimal signal transmission and maximum reliability. While other cable manufacturers may provide varying performance levels, INOGENI’s lab has conducted extensive tests to give you the flexibility to choose your preferred cable brand.
Plug & Go
The INOGENI U‑BRIDGE USB‑C is the perfect companion for modern USB‑C videobars, cameras, and displays from brands such as Cisco, Logitech MEETUP, Lenovo, Poly, and more. Designed to extend USB-C connectivity far beyond standard cable limitations, U-BRIDGE enables effortless BYOM (Bring Your Own Meeting) experiences in medium- and large-sized videoconference rooms.
With a single USB‑C connection to the laptop, users instantly gain access to the room’s professional camera, microphone, speakers, and display—making high‑quality meetings as simple as plugging in the devices.
Engineered for reliability and seamless integration, U‑BRIDGE ensures stable, high‑bandwidth USB‑C extension without signal loss, dropouts, or compatibility issues.
Whether paired with a videobar or a dedicated PTZ camera and monitor, it delivers the performance required for enterprise‑grade conferencing. AV technicians benefit from a plug‑and‑play installation that eliminates complexity while maintaining full compatibility with leading UC platforms.
By extending USB‑C like never before, INOGENI’s U‑BRIDGE USB‑C transforms any space into a flexible, laptop‑driven collaboration environment—delivering a consistent, intuitive, and professional BYOM experience in every meeting. Perfectly suited for boardrooms, videoconference rooms, lounge areas, and classrooms, it simplifies connectivity and eliminates distance limitations, ensuring seamless collaboration anywhere.
Unlock ultimate versatility with the INOGENI U‑BRIDGE USB‑C. Featuring USB‑C and dual USB 3.0 device ports, it is fully compatible with all USB cameras, videobars, and pro‑AV audio devices—including speakerphones, microphones, and soundbars—from multiple brands, such as Vaddio, Huddly, HuddleCamHD, AVer, Cisco, Jabra, Logitech, Marshall, and many others.
