Get all the technical specs you need for the U-BRIDGE USB-C extender.
Both U-BRIDGE USB-C and U-BRIDGE USB-C DUO extend full USB-C functionality—including USB 2.0, 100W laptop charging, and DisplayPort Alternate Mode.

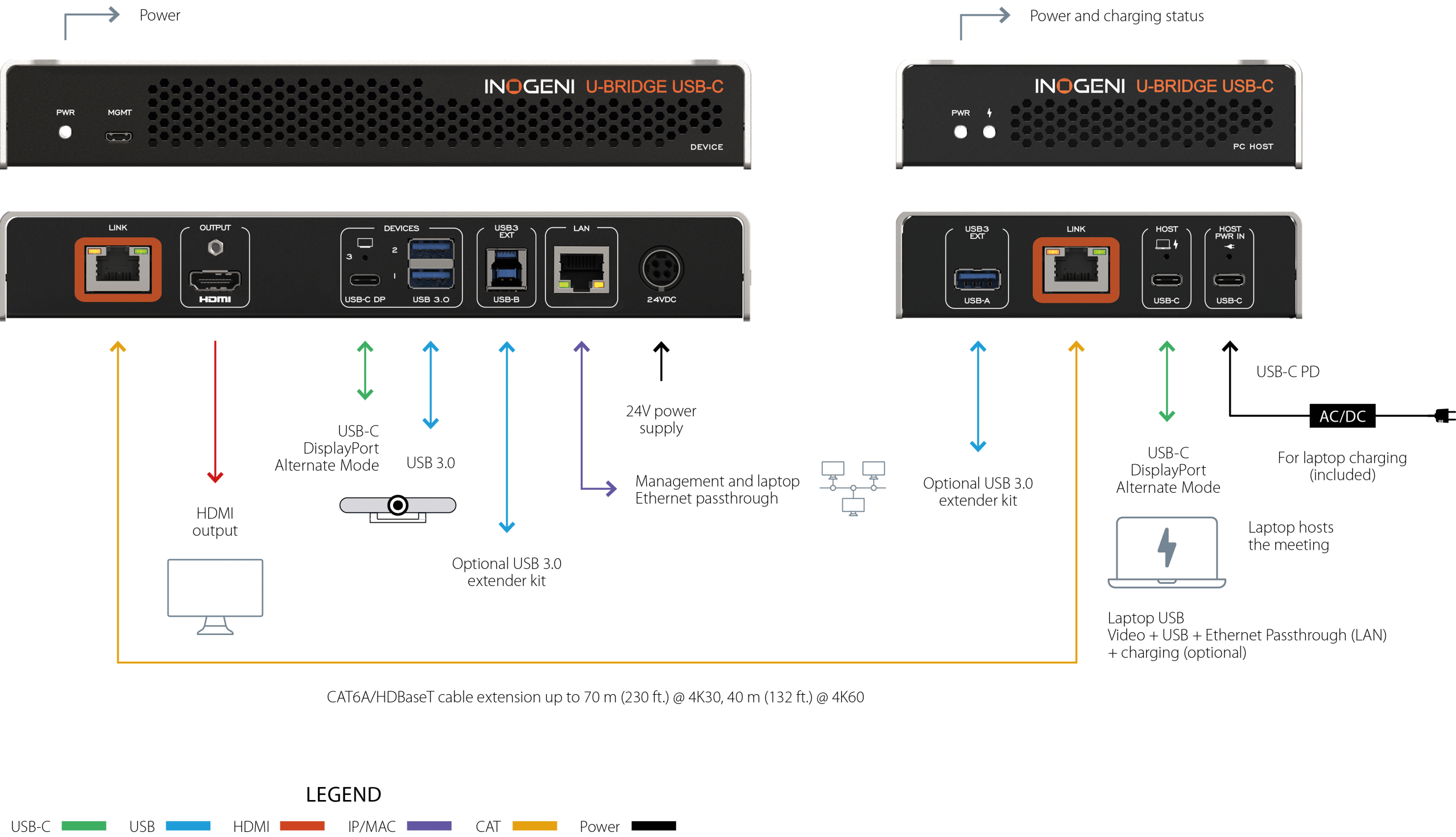

Block diagram
The U-BRIDGE USB-C offers a seamless single-display extension.

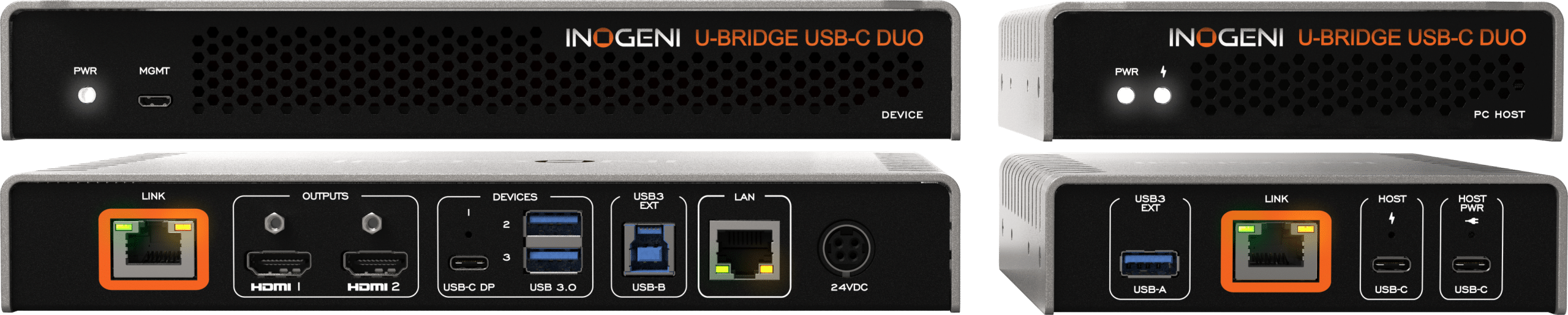

The U-BRIDGE USB-C DUO delivers the same robust technical features as the standard single-display model, now enhanced with a second HDMI output for seamless dual-display and extended desktop functionality.
Main features
Description
Designed for high-performance video extension, the U-BRIDGE USB-C series supports USB data and DisplayPort Alt Mode (4K60) up to 70 m (230 ft.) via CAT6A U/FTP.
- U-BRIDGE USB-C: Provides a seamless single-display extension.
- U-BRIDGE USB-C DUO: Adds a second HDMI output to support dual-screen extended desktop configurations, maintaining the same robust technical footprint as the standard model.
Link
Technology
HDBaseT 3.0
Range
Direct connect up to 70 m (230 ft.) over CAT6A U/FTP
Medium
CAT6A U/FTP (Discover the INO-CAT6A cable)
NOTE: We do not recommend using a crimp tool for attaching terminations. Instead, we highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.
USB
Speeds
USB 2.0: up to 480 Mbps when USB devices are extended
* USB 3.2 Gen 1 if devices are extended with the use of our U-BRIDGE 3 extension
Transfers support
Bulk, isochronous, interrupt and control types
Built-in hardware acceleration for isochronous and bulk transfers
Video – HDMI
HDCP compliance
Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
HDMI compliance
Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
Sampling frequency
600MHz
Chroma subsampling
YUV/RGB
4:4:4, 4:2:2
CEC
Ability to send CEC commands to connected HDMI display sink
PC HOST extender
USB host connector
1x USB Type-C receptacle with mounting screw hole for connection to the laptop.
- USB2.0
- USB 3.2 Gen 1 (with the use of our U-BRIDGE 3 extension)
- Video up to 3840x2160p60 / 4096x2160p60
- Network connectivity
- Charging through provided USB-C power supply
USB power connector
1x USB Type-C receptacle with mounting screw hole for USB-C power supply
- Power source input
- USB2.0 connection reserved for management
Link connector
1x RJ45
USB3-EXT connector
1x USB-A connector for connection to our U-BRIDGE for USB3.2 Gen 1 support
LED
1x power LED
1x charging status LED
Dimensions (W x L x H)
7.0 cm x 9.7 cm x 2.3 cm
2.76″ x 3.82″ x 0.90″
Weight
470 g (1.04 lb)
Mounting
Bracket provided
Enclosure material
Aluminum/metal case
Power
PC HOST is powered by the DEVICE module, except for charging the laptop
DEVICE extender
USB connectors
2x USB-A (USB3.2 Gen 1) receptacle
1x USB-C (USB3.2 Gen 1) receptacle with mounting screw hole
Video outputs
Single display:
- 1x USB-C DisplayPort Alternate Mode – Source
- 1x HDMI 2.0 receptacle with cable locking option
- Up to 3840x2160p60 / 4096x2160p60
Dual displays:
- 1x USB-C DisplayPort Alternate Mode – Source
- 2x HDMI 2.0 receptacles with cable locking option
- Up to 3840x2160p60 / 4096x2160p60
- NOTE: If 2x displays are connected at the same time, each video output can go up to 3840x2160p30. This is an HDBaseT limitation.
Link connector
1x RJ45
USB3-EXT connector
1 x USB-B connector for connection to our U-BRIDGE 3 in case user needs USB3.2 Gen 1 support
LED
1x power LED
Available current
Up to 1.8A shared between ports
Dimensions (W x L x H)
22.3 cm x 14 cm x 3.3 cm
6.66 ″ x 5.51 ″ x 1.18 ″
Weight
820 g (1.81 lb)
Mounting
Bracket provided
Enclosure material
Aluminum/metal case
IP interface
10/100Mbps
Supports DHCP or static addressing
Used for control and USB-C network connectivity over the PC HOST module
Physical details
Package dimensions (W x L x H)
35.5 cm x 29 cm x 12.6 cm
14.0″ x 11.4″ x 4.96″
Power supply
100-240V AC Input, 24V 2.5A DC output
Package weight
3610 g (9.96 lbs)
Package contents
1x PC HOST extender module
1x DEVICE extender module
1x USB Type-C to Type-C cable
1x installation guide
2x mounting brackets for the power supply
2x mounting brackets for the USB-C power supply
2x mounting brackets for the PCHOST module
2x mounting brackets for the DEVICE module
16x black wooden screws
1x power supply 100-240V AC Input, 24V 2.5A DC output
1x USB-C power supply – 100-240V AC input, up to 20V 5A DC output
International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
Operating temperature
0°C to 50°C
32°F to 122°F
Storage temperature
-20°C to 70°C
-4°F to 158°F
Operating humidity
20% to 80% relative humidity, non-condensing
Storage humidity
10% to 90% relative humidity, non-condensing
Information
U-BRIDGE USB-C - UPC code
051497480417
U-BRIDGE USB-C DUO - UPC code
051497480431
Origin
Canada
Warranty
5 years
Certifications
Certifications – Device
FCC, CE, UKCA, RoHS, SoV, RCM, NOM
Certifications – Power supply (60W)
FCC, CE, UKCA, CB, UL, TUV, EMC, IEC62368
Certifications – Power supply (100W)
FCC, CE, UKCA, IEC62368
TAA-compliant
Yes
What’s in the box
- 1x PC HOST extender module
- 1x DEVICE extender module
- 1x USB Type-C to Type-C cable
- 1x installation guide
- 2x mounting brackets for the power supply
- 2x mounting brackets for the USB-C power supply
- 2x mounting brackets for the PCHOST module
- 2x mounting brackets for the DEVICE module
- 16x black wooden screws
- 1x power supply 100-240V AC Input, 24V 2.5A DC output
- 1x USB-C power supply – 100-240V AC input, up to 20V 5A DC output
- International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
