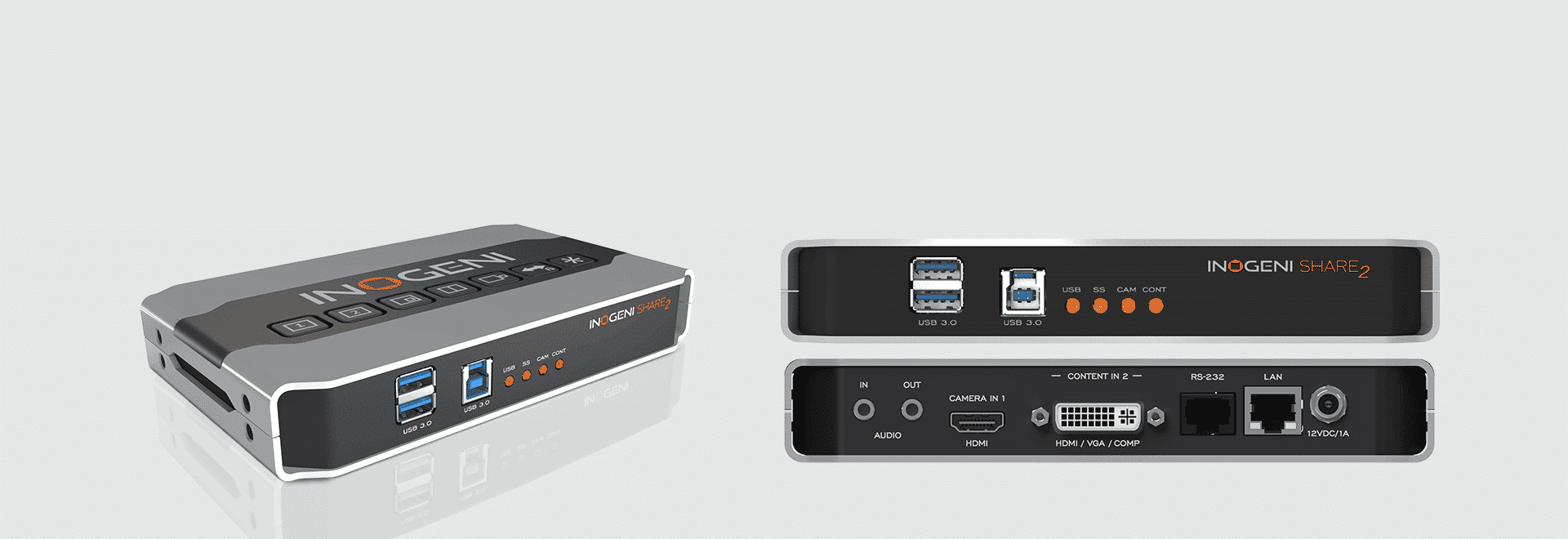

Get all the technical specs you need for the SHARE2U Dual USB Camera to USB 3.0 Camera Mixer.
Main feature
2:1 Camera mixer
2:1 Camera mixer
(2x HDMI cameras mixer into a single USB 3.0 interface)
Simultaneous capture and mix of 1x HDMI and 1x DVI/VGA/Component Analog or digital/or CVBS + Audio into 1x1080P60 USB 3.0 signal.
14 mix setup videos:
Picture-in-picutre, side-by-side
Video input
#1 Connector & video resolutions
1x HDMI
1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
Frame rate: up to 60 Hz, all formats.
#2 Connector & video resolutions
1x DVI-I (Digital + Analog)
– OR-
With HDMI Adapter
Note: You may use the included HDMI to DVI adapter to have two HDMI inputs.
DVI: 1080p, 1080i, 720p, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
VGA: 1080p, 720p, 480p, 576p, 1920×1200, 1680×1050, 1400×1050, 1600×1200, 1280×1024, 1360×768, 1280×768, 1280×800, 1024×768, 800×600, 640×480
Component: 1080p, 1080i, 720p, 480p, 480i, 576p and 576i
CVBS – 480i, 576i
Frame rate: up to 60 Hz, all formats.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2
Video output
USB
1x USB 3.0 uncompressed up to 1080p60
(One mixed video stream)
USB - Color Space ou CODEC
USB 3.0: YCbCr (YUY2) 4:2:2 8-bit
USB 2.0: MJPEG
USB - Video scaler
Automatic hardware-based
USB - Color space conversion
Automatic hardware-based
USB - Sampling conversion
Automatic hardware-based
USB - Frame rate conversion
Automatic hardware-based
Audio
Analog audio connections
Analog stereo, line level, 3.5 mm jack
Analog audio I/O
2-channel LPCM 48kHz audio from line input
Digital audio I/O
Embedded in HDMI
Audio routing
See following link for SHARE2 and SHARE2U Audio routing.
Control
Control options
Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232 (SHARE2 requires installation of COM port driver)
IP interface
10 Mbps
Static address configuration through our Control App.
DHCP not supported.
USB Port
USB expansion port
Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host
Compatibility
Barco ClickShare compatible
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Operating systems
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)
Consumed USB tiers
2 tiers
The device is a USB composite device connected to an embedded USB hub.
Minimum host requirements
USB 2.0 port – We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported cameras
Cameras and camcorders with an HDMI, DVI, VGA or CVBS output
Software Compatibility
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
18.5 cm x 11.0 cm x 3.0 cm
7.28” x 4.33” x 1.18”
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight
520 g (1.15 lb)
Package content
1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x HDMI to DVI adapter
1x VGA to DVI adapter
1x Serial RS-232 cable (DB9 female to RJ45 plug)
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
040232461736
Origin
Canada
Warranty
5 years: Products purchased by the end-user after August 1, 2024
2 years: Products purchased by the end-user before to August 1, 2024
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM
TAA-compliant
Yes
What’s in the box
- 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
- 1x HDMI to DVI adapter
- 1x VGA to DVI adapter
- 1x Serial RS-232 cable (DB9 female to RJ45 plug)
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
