TOGGLE ROOMS

Application

The TOGGLE ROOMS 3 host switcher for USB/HDMI devices can be used for a wide variety of applications.

The most popular videoconference systems need TOGGLE ROOMS

To enable BYOM-BYOD so that users can easily switch peripherals to the guest laptop in the meeting room (cameras, microphones, speakerphones, display screens or videobars).

Systems using MTR need the TOGGLE ROOMS for BYOM.

TOGGLE ROOMS application diagrams with UC Partners

> AIRTAME – Airtame Hub (PDF)

> BARCO – Barco ClickShare CX20/CX30/CX50 (PDF)

> BARCO – SHARE2U & Barco ClickShare CX20/CX30/CX50 (PDF)

> BARCO – Barco ClickShare CX20/CX30/CX50 Gen 2 via USB-C connection (100W) (PDF)

> CRESTRON – Crestron Flex Advance Series (PDF)

> LENOVO – Lenovo ThinkSmart Core, Controller Kit and ThinkSmart Bar 180 (PDF)

> LENOVO – Lenovo ThinkSmart Bar 180 and Core, IP Controller Kit (PDF)

> LENOVO – Lenovo ThinkSmart Core and IP Controller Kit with Room peripherals or other device (PDF)

> LOGITECH – Logitech Rally Bar Medium Room System with PC (PDF)

> LOGITECH – Logitech Rally (Camera, Speaker, Mic Pod and Tap) for Large Room System with Intel NUC (PDF)

> LOGITECH – Logitech Rally Bar and Sight camera (PDF)

> LOGITECH – Logitech MeetUp 2 Room System and Airtame (PDF)

> LOGITECH – Logitech Rally Bar camera in appliance for Room PC host (PDF)

> LOGITECH – Logitech Rally Bar camera in appliance for Room PC host with INO-BUTTON KIT (PDF)

> MAXHUB – MAXHUB XCore Kit (PDF)

> MAXHUB – MAXHUB XCore Kit Pro (PDF)

> POLY – Poly Studio room kit with HP Mini Conferencing PC (PDF)

> All partners diagrams (PDF) with the TOGGLE ROOMS

Training video

TOGGLE ROOMS - Launch of a 4k BYOD/BYOM switcher for 2PCs for video conferencing meeting

01:39

INOGENI explains TOGGLE Series integration with Airtame for hybrid meetings

02:27

+ See all videos on Youtube

* BYOD – Bring Your Own Device
**BYOM – Bring Your Own Meeting

BYOD/BYOM compatibility for Room PCs and laptops:

Automatic or manual switching of 4 peripherals (3x USB + 1 display) between 3 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering the flexibility of a push button or control pad for various meeting scenarios.

Compatibility with leading MTR and Zoom Rooms systems as well as pro-AV USB devices

Compatible by design:
- It is compatible with top Microsoft Teams Rooms (MTR) and Zoom Rooms systems, including Logitech, Lenovo, Jabra, MaxHub, Crestron Flex, Airtame and Poly Studio Room Kit, as well with USB cameras, videobars and videoconferencing audio systems.
Automatic switching:
- Enjoy hassle-free meetings with automatic switching between connected devices, enhancing user convenience and optimizing meeting room efficiency.
Seamless connectivity:
- Effortlessly switch between Room PCs and laptop hosts, enabling fast transitions of peripherals for a seamless collaboration experience.

ONE CABLE SOLUTION TO TAKE CONTROL OF THE ROOM

2-meter USB-C 100W cable included
USB-C solutions tested up to 10 meters (view the list)
2x HDMI output up to 4k60, one for Room Display, one for content sharing or 21:9 wide screen capable

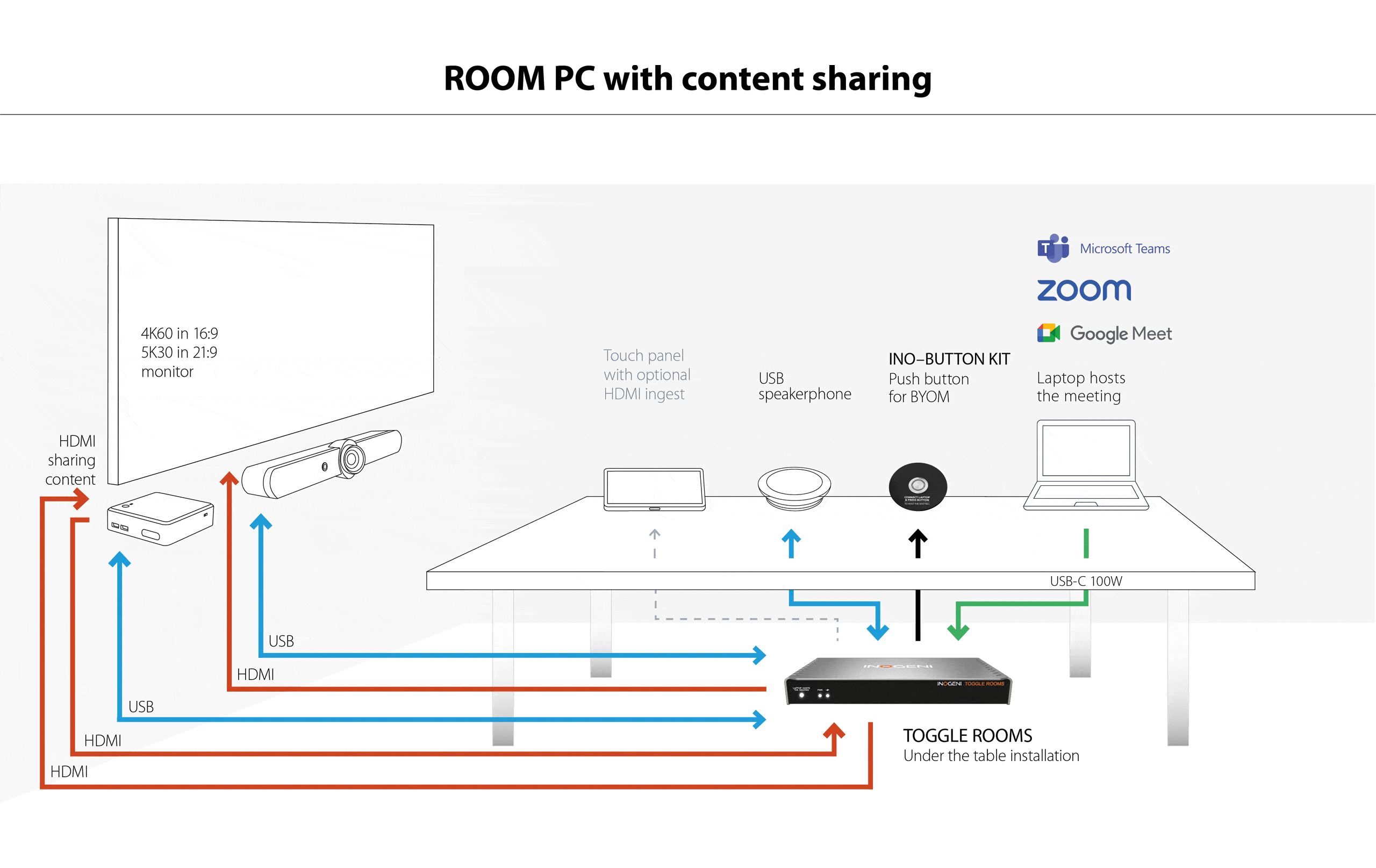

Room PC BYOD mode with content sharing:

The Room PC is the system currently selected for the main USB and HDMI peripherals.
HDMI content from the laptop can be sent to the Room PC through the HDMI SHARE output connection.

Laptop BYOM mode: Control all peripherals + cloud meeting:

The laptop is the system currently selected for the main USB and HDMI peripherals.
The Room PC is completely disconnected from the setup.

BYOM mode button (INO – Host button)

INO – Host button (OPTIONAL)

Function: A simple button interface to activate BYOM mode (laptop hosts the meeting)

Requirements:
- Connected to the unit with a simple CAT cable (CAT cable not included).
- By default, the button will configure the device to operate in BYOM mode.
To activate BYOM mode (laptop host)
- The laptop needs to be connected via the USB-C cable or USB-B + HDMI cables.
- When the button is pressed, the button will illuminate, indicating the peripherals (cameras, audio or videobar) are connected to the laptop for a BYOM meeting hosted by the laptop. (Only because the button doesn’t actually connect the peripherals – TOGGLE ROOMS does).
- By pressing the button again, BYOM to the laptop will be disabled and the host will return to the room PC as indicated by no illumination.
User controls:
- The button controls the device through GPI interface.
  - The device automatically detects new connections.
  - Physical button on the unit itself for installation with a technician.

GPI for controlling BYOM mode
